Removing and Installing Dashboard Support|Page 6290 > < Removing and Installing Dashboard Support|Page 6288
Page 13
background image

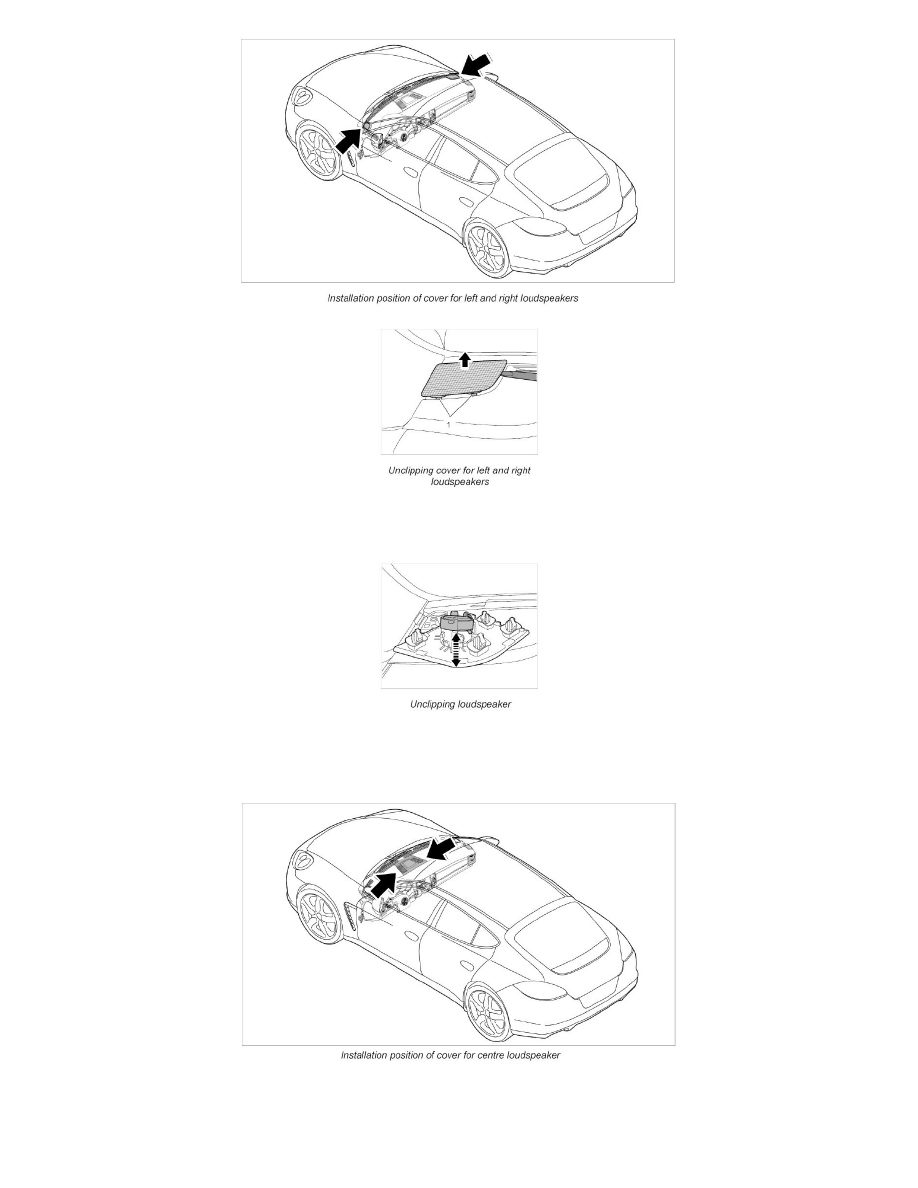

1. Insert a plastic wedge between dashboard and cover for loudspeaker.
2. Press the cover for the left and right loudspeakers upwards -arrow- and unclip from the two retaining clips -1- .

3. Unclip the loudspeaker from the cover.

Removing cover for centre loudspeaker
