Panamera S (970) V8-4.8L (2010)
Vehicle Lifting: Service and Repair
Lifting the vehicle
Preliminary work
1. When driving onto the lifting platform, bear in mind the work that needs to be carried out!
1.1.
In other words: if work has to be carried out in the front footwell, the vehicle should be positioned in such a way that the front doors can be
opened far enough.
2. If the vehicle is a Panamera with air suspension/leveling system, ALWAYS observe the following instructions!
2.1.
Read the section entitled >>Switching off the leveling system<<.
General warning notes
Vehicle can fall down
DANGER
Vehicle can fall down
*
Risk of squashing or crushing
*
Risk of damage to the vehicle
-> Do not place any solid objects under the raised vehicle.
-> Ensure that the lifting platform is prevented from lowering.
-> Remove solid objects before lowering the vehicle.
-> Raise the vehicle only at the take-up points provided.

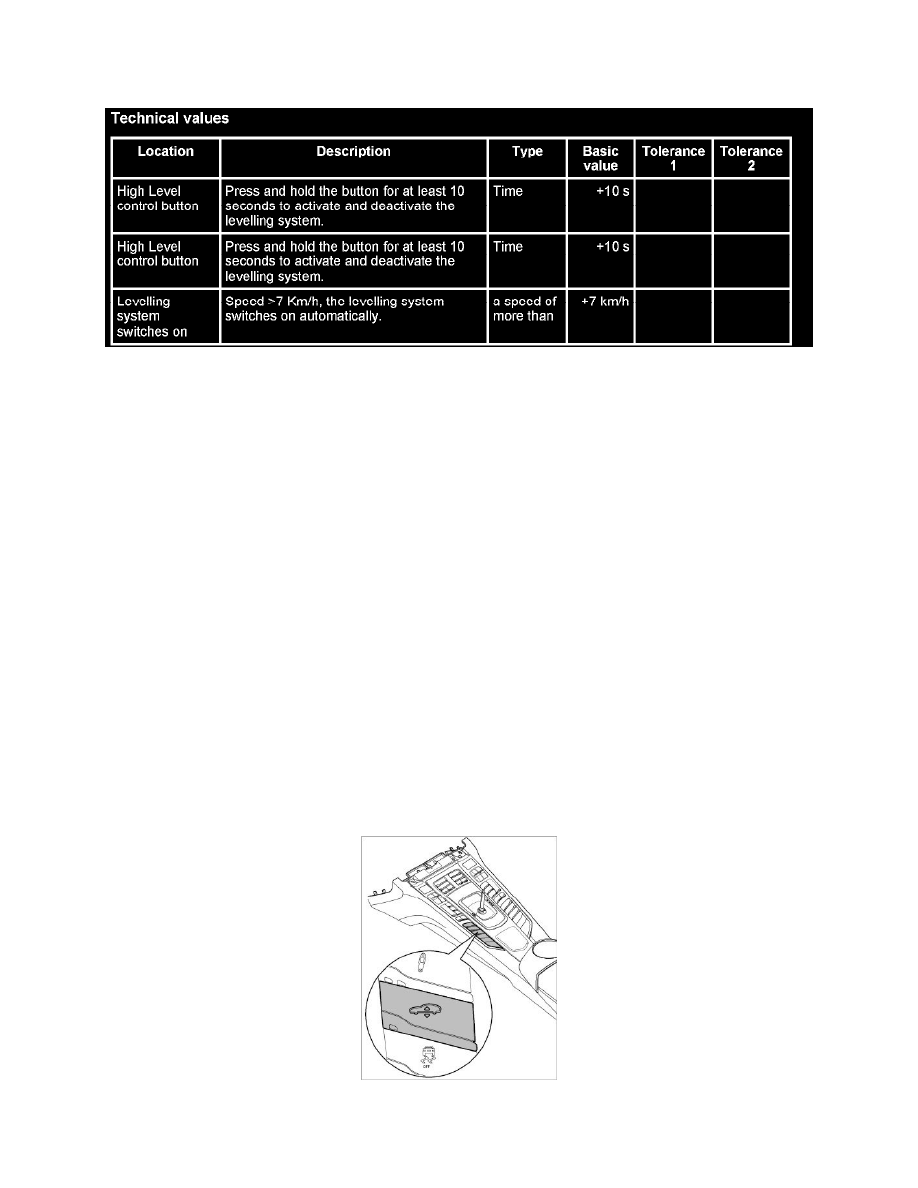

Switching off the leveling system
Switch off the leveling system. To do this:
-
Switch on ignition.
-
Press the High Level control button for at least -> Time: +10 s.
High Level control button
The message >>Control off<< appears on the instrument cluster.
