Panamera S (970) V8-4.8L (2010)
Clutch Switch: Service and Repair
Removing And Installing Clutch Switch Interlock
Preliminary work
1. Remove left front wheel.
2. Remove rear section of left front wheel housing liner.
Removing clutch switch interlock
INFORMATION:
-
Installation position:
-

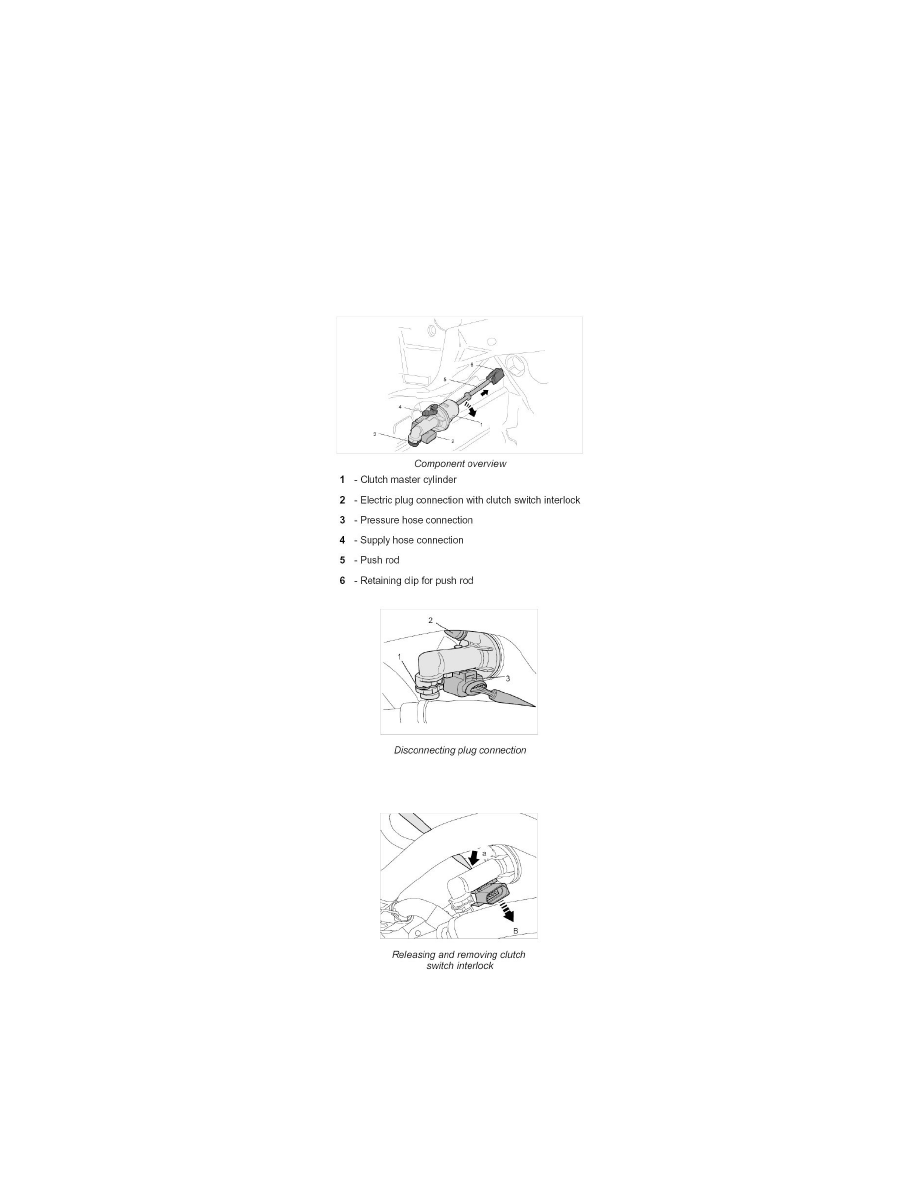

The clutch switch interlock is located under the wheel housing liner in the driver's side front wheel housing.
-
It is connected to the clutch master cylinder by a locking mechanism.
1. Release and pull off electric push-on connector -3-.
2. Release the locking mechanism of the clutch switch interlock by pressing to the rear with a screwdriver -a- and pull it down and off -B-.
Installing clutch switch interlock
