9-2X F4-2.0L Turbo (2005)

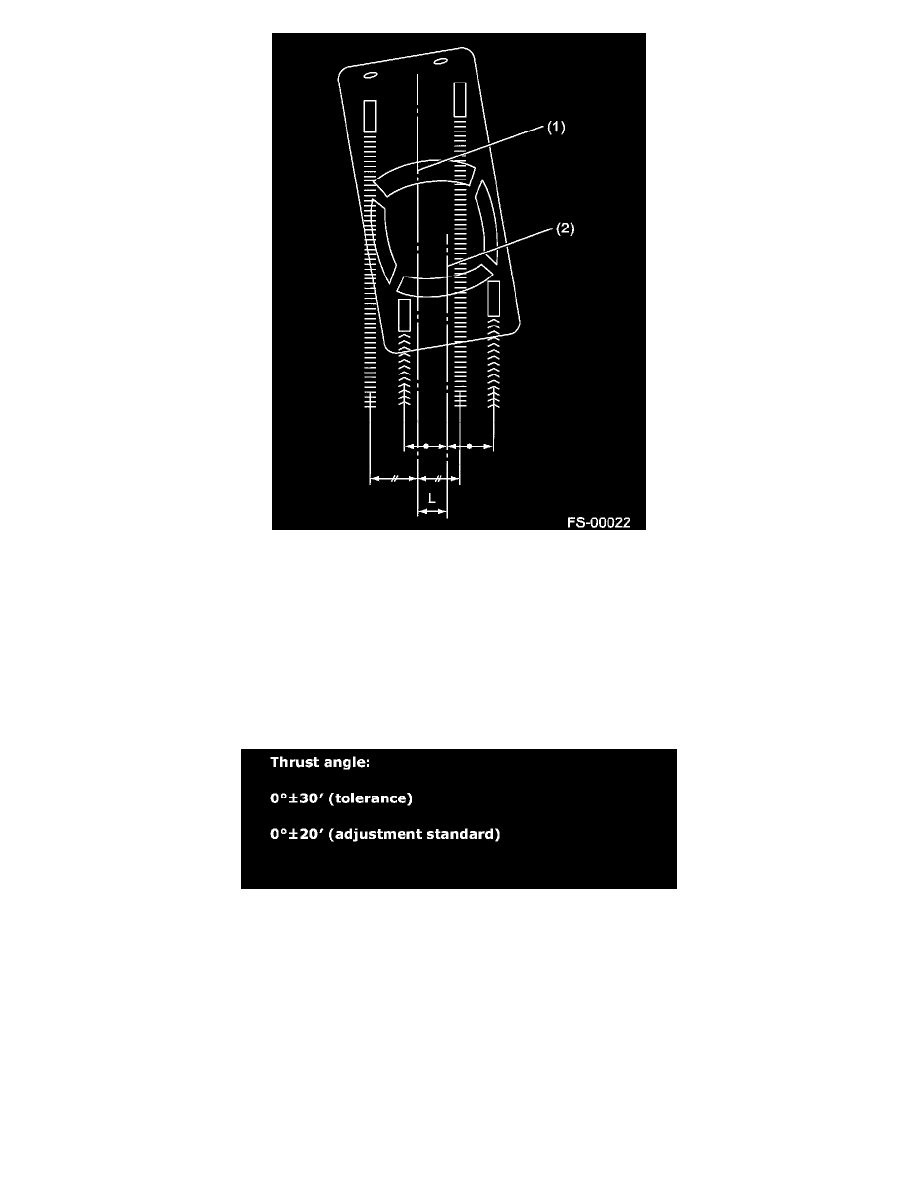

(1) Center line of loci (front axle)
(2) Center line of loci (rear axle)
Adjustment
Make the thrust angle adjustments by turning toe-in adjusting bolts of rear suspension equally in the same direction.
When one rear wheel is adjusted in a toe-in direction, adjust the other rear wheel equally in toe-out direction, in order to make thrust angle adjustment.
When the right and left adjusting bolts are turned incrementally by one graduation in the same direction, the thrust angle will change approximately 16'
["L" is almost equal to 12 mm (0.472 in)].
Thrust angle:
