Alignment: Specifications (page 7 of 8)
- Make
- Saab
- Model
- 9-3 (9440)
- Engine
- L4-2.0L Turbo
- Year
- 2007
- Section
- Alignment
MaintenanceSpecifications · page 7 of 8
/l4-2.0l_turbo/Page-955004.png)

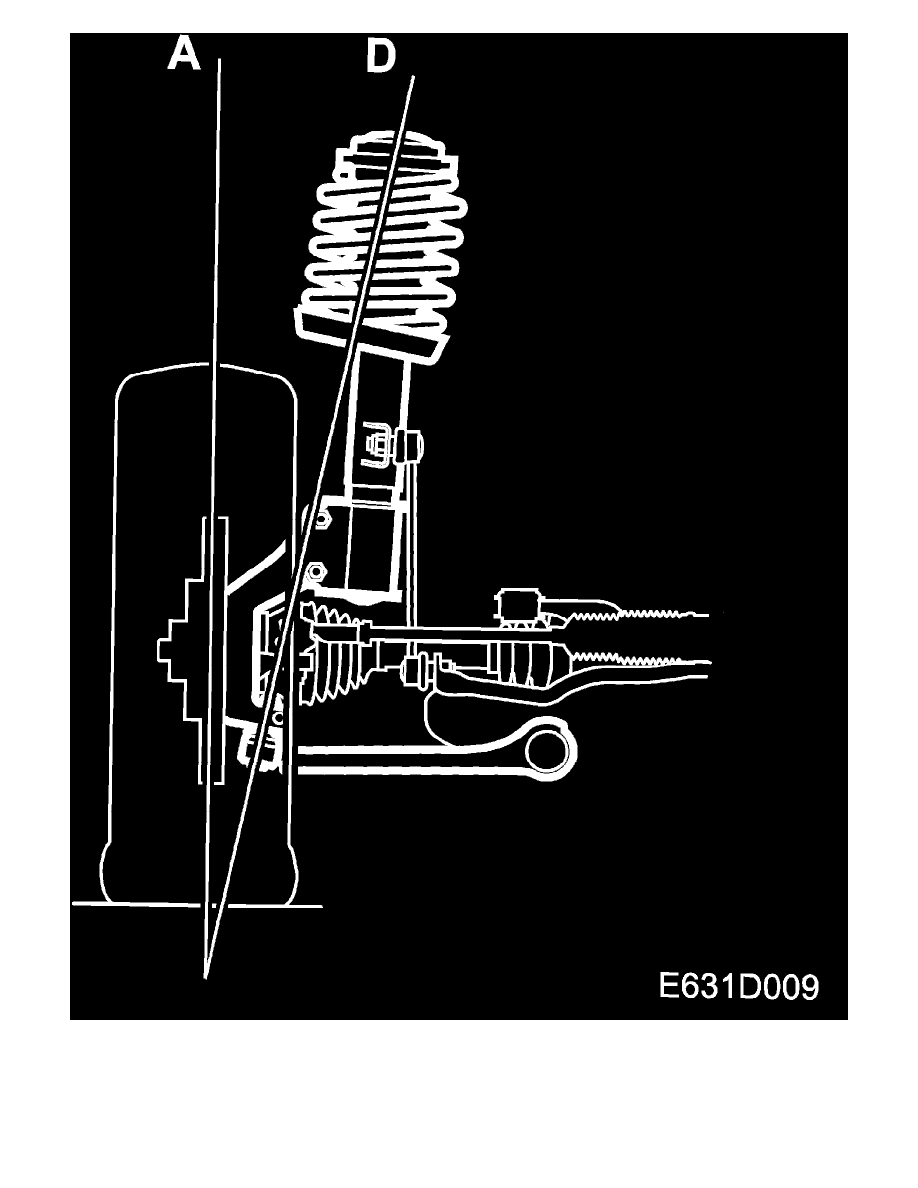

Imaginary swivel-axis line is the angle indicated in degrees between the swivel axis (D) (an imaginary line running through the ball bearing in the upper
spring cup and the steering swivel member's ball joint) and the vertical (A).
Inward inclination is positive and outward inclination is negative. Correct inclination makes for lighter steering and tends to keep the wheels pointing
straight ahead.
