Drive Belt: Service and Repair

Drive belt, auxiliaries

To remove

1. Raise the car.
2. CV:Remove Chassis reinforcement, front subframe, CV.

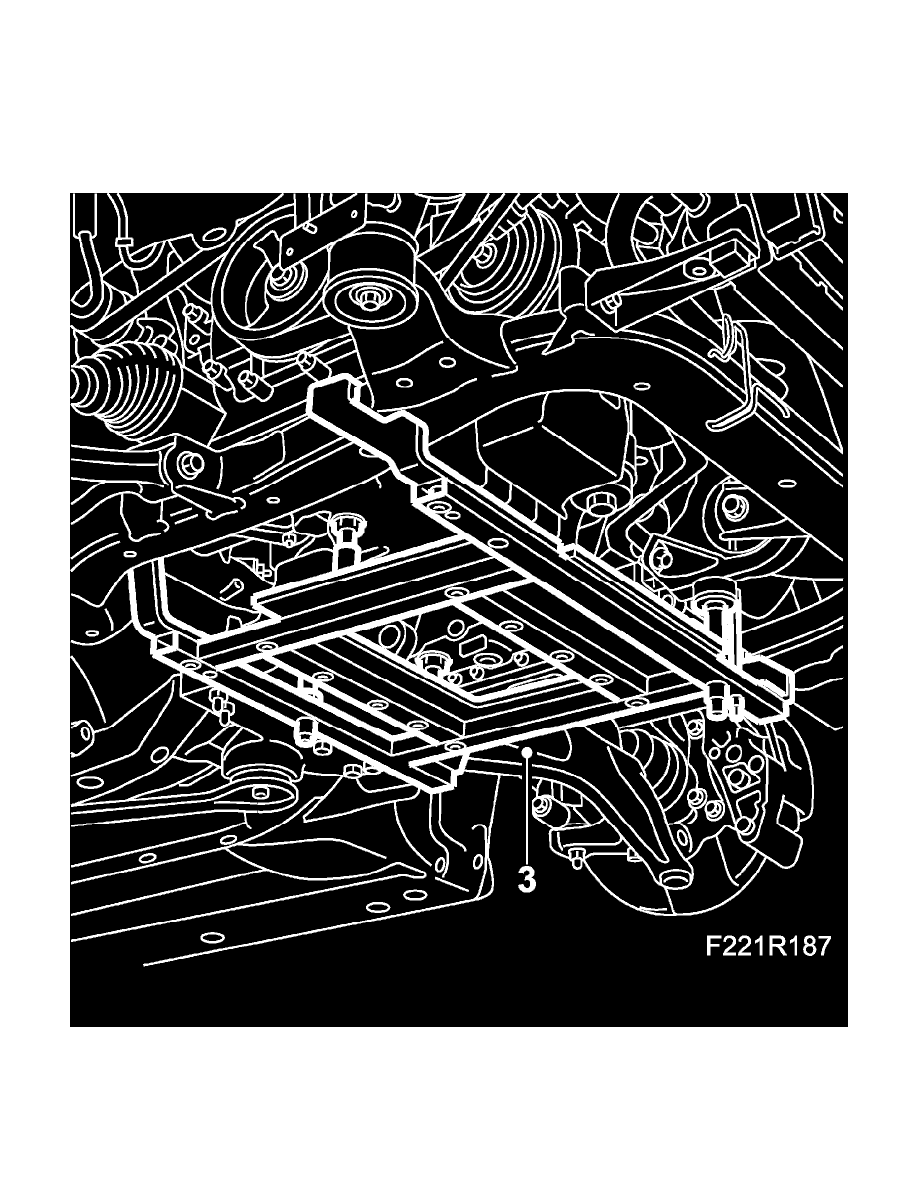

3. Fit 83 96 145 centering fixture, subframe - engine on the engine's subframe and 83 96 152 centering tool, power train with 32 025 059 Support.

First remove the two long supports. Relieve the load from the engine.

4. Remove the front spoiler shield.
5. Lower the car.
6. Remove the upper section of the air cleaner.
