9000 L4-1985cc 2.0L DOHC (1986)
Cylinder Head Gasket: Technical Service Bulletins

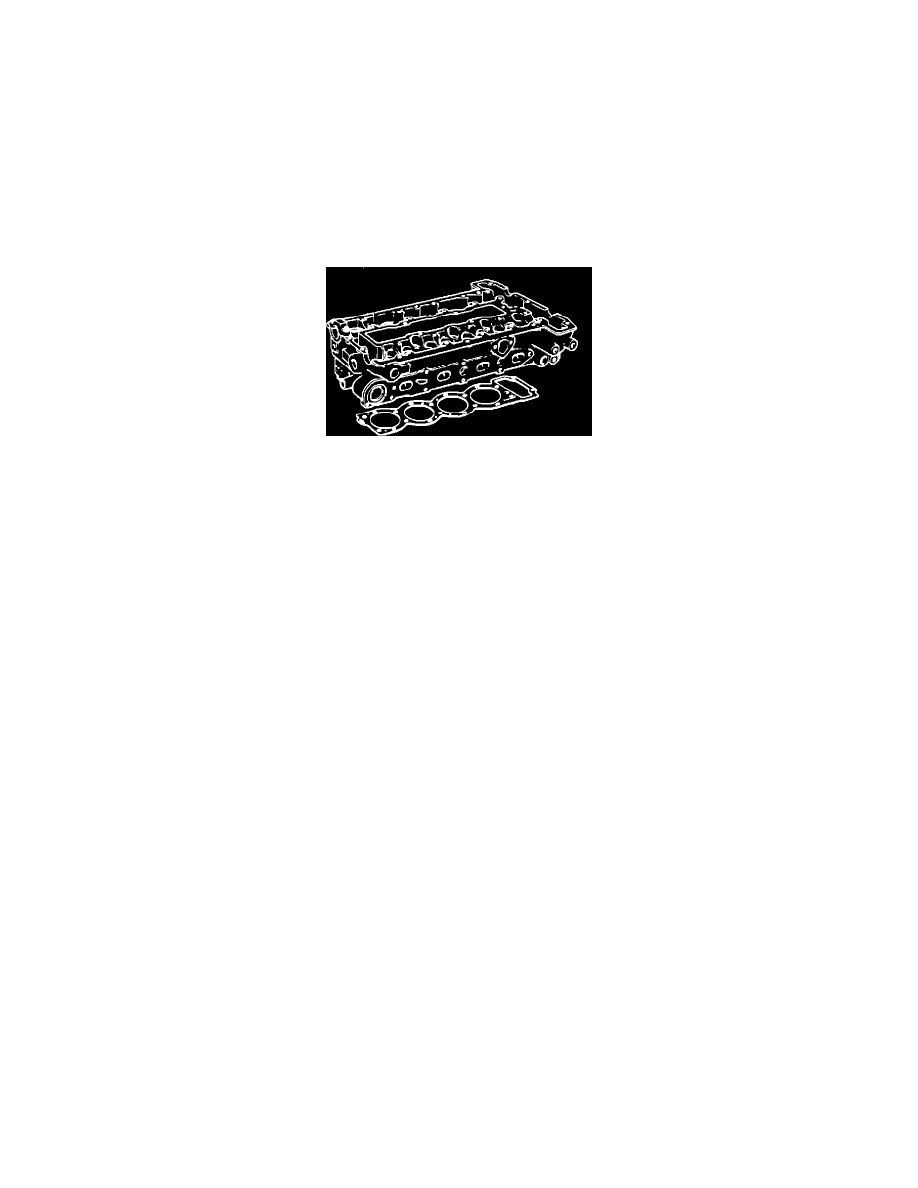

Cylinder Head Gasket - New Design
FILE IN S.I. Man
VOL. I
SEC. B-1
PG. 34
Service Information
SUBJECT:
NEW CYLINDER HEAD GASKET, ISSUE: 09/87-995 RETORQUING CYLINDER HEAD
APPLICATION: 9000 MODELS 1986-
NEW CYLINDER HEAD GASKETS MAKE RETORQUING UNNECESSARY
A new cylinder head gasket for 16-valve engines eliminates the requirement of retorquing the cylinder head after the engine has been warmed up and
allowed to cool down. Retorquing at 1000 miles is also unnecessary. The part number for this gasket is listed below:
Does Not Require Retorquing - New
16-Valve Engines
75-61-301
Earlier type replacement gaskets for the 16-valve engine still require that the cylinder head be retorqued after the engine has been warmed up and
allowed to cool down. If this cool down and retightening takes place, retorquing at 1000 miles is unnecessary. Part number listed below:
Requires Retorquing
16-Valve Engine
75-16-529
