9000 L4-2290cc 2.3L DOHC (1991)
Fuse: Locations
Electrical Distribution Box Behind the Glove Compartment
Fuse/Relay Location and Identification
Electrical Distribution Box Behind the Glove Compartment
Fuses
The fuses are located in a fuse box and can be reached through an access panel in the glove compartment. The locations of the fuses are shown below.

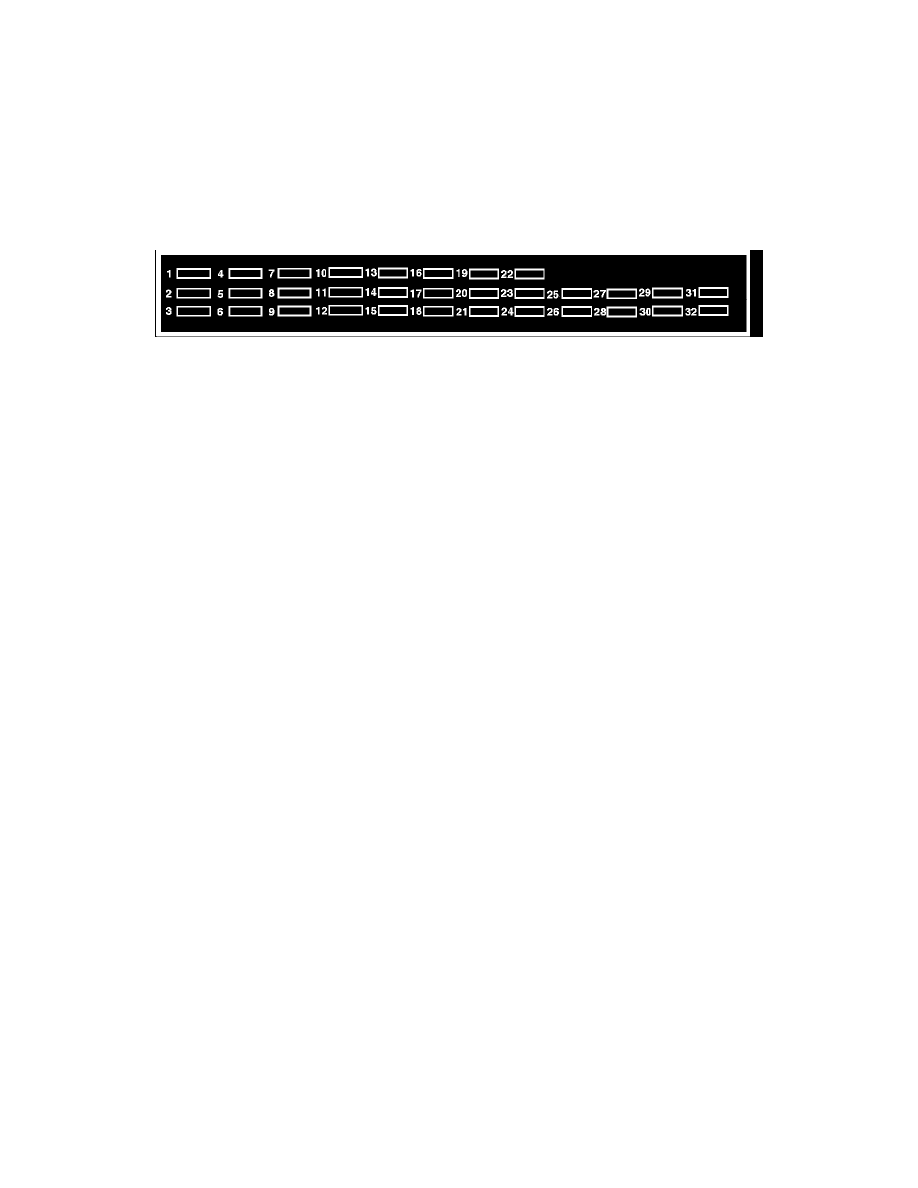

Fuse Panel
Fuse
Function
Rating
1
Automatic Climate Control (ACC)
10 A
Recirculation for AC
2
Cruise Control system
10 A
Electrically operated rear-view mirrors
3
Seat-belt warning lamp
10 A
Seat belt and ignition key warning
Storage compartment in center console
Reading Lamps
Corner lights
Make-up mirrors
4
Spare
5
DI/APC system
10 A
6
Ventilation fan (AC)
30 A
7
Headlamp wipers
10 A
Horn
8
Windscreen wipers
15 A
9
Reversing lights
10 A
Rear window regulators
Electrically operated sunroof
10
Electric heating pads for the front seats
20 A
11
Front window regulators
25 A
12
Direction indicators
15 A
Headlamp beam control
13
Combined instrument
10 A
Fuel injection system
EDU1/EDU2
14
Fuel pump
20 A
15
Electronic throttle control
5 A
16
Central locking
15 A
Electronically operated boot lid lock
Interior lighting
Courtesy lamps
Luggage compartment illumination
17
ACC
10 A
EDU1/EDU2
18
Heater element for the rear window
30 A
19
Radio, electrically-operated aerial
15 A
Clock
DCC
20
AC radiator fan, compressor
30 A
21
Horn, electronic throttle control
25 A
22
Hazard warning lights
15 A
23
Test socket for engine electronics and car electronics 5 A
24
Brake lights
15 A
