9000 L4-2290cc 2.3L DOHC Turbo EFI (1992)
Idle Speed/Throttle Actuator - Electronic: Specifications

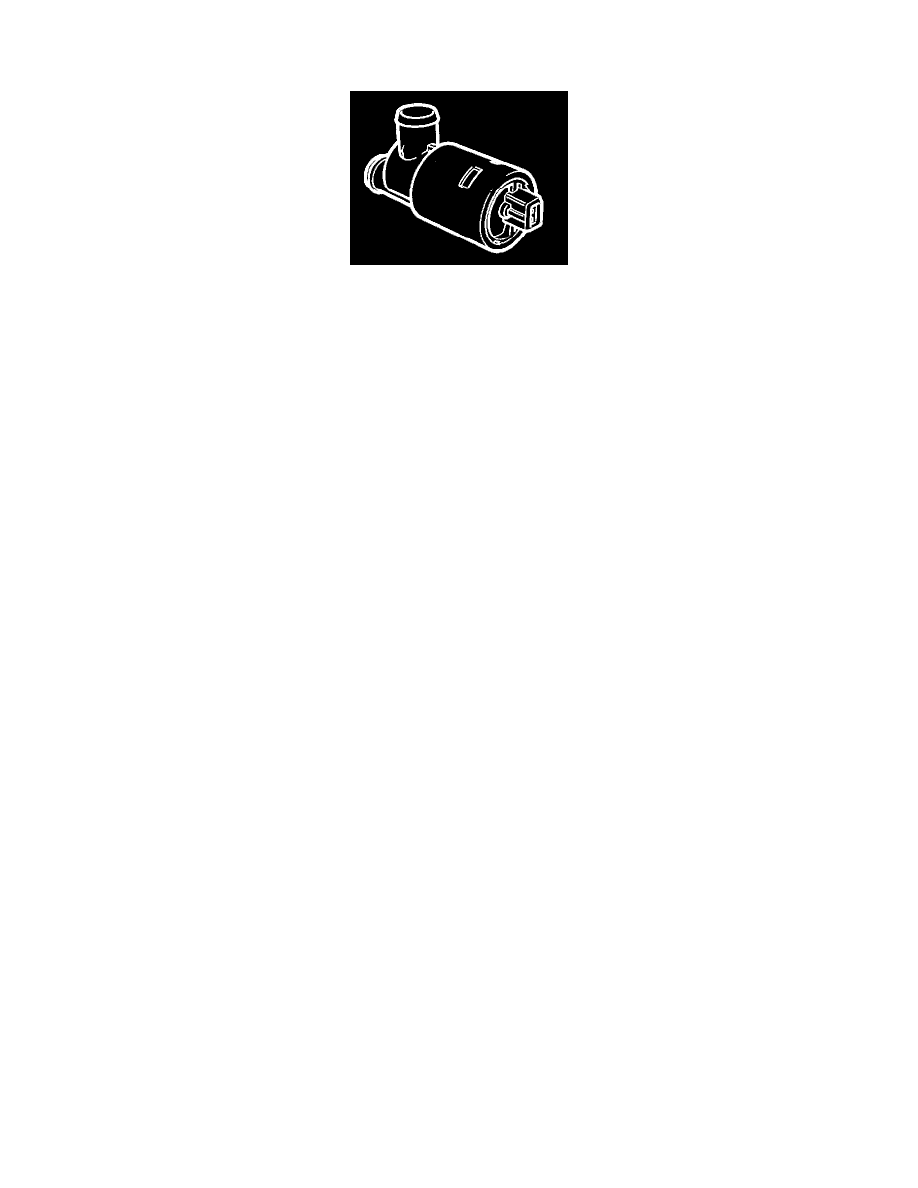

Idle air control valve (IAC)
Resistance at 20°C (68°F),
LH 2.2
Ohms 20 ± 5 (pins 2-1 and 2-3)
LH 2.4, LH 2.4.1 Ohms 7 ± 5 (pins 1-2)
LH 2.4.2
Ohms 12 ± 3 (pins 2-1 and 2-3)
