Astra L4-1.8L (2009)
Headliner: Service and Repair
Headlining Trim Panel Replacement (Coupe)
Headlining Trim Panel Replacement (Coupe)
Removal Procedure
1. Remove the windshield. Refer to Windshield Replacement (See: Windows and Glass/Windshield/Service and Repair/Windshield Replacement).
2. Remove the rear compartment cover.
3. Remove the upper center pillar, left side.

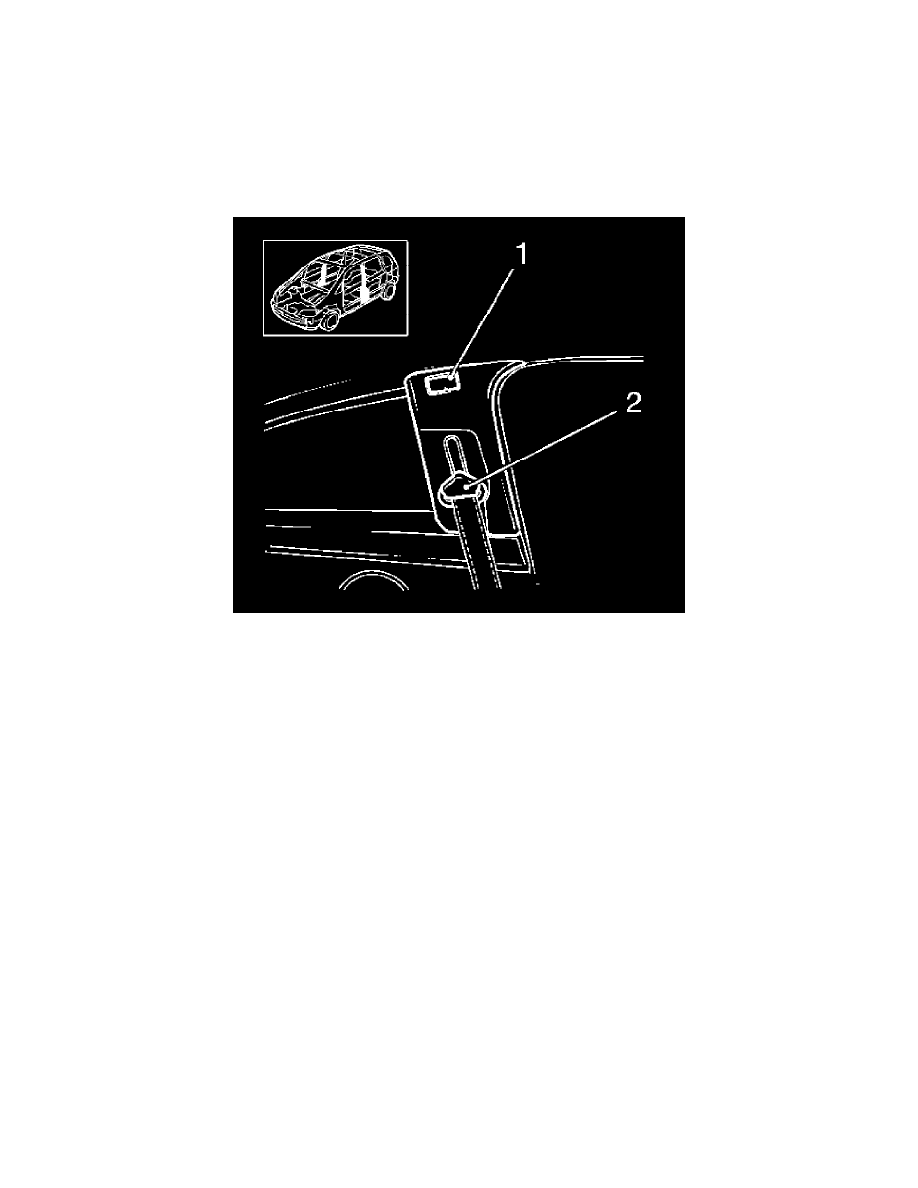

1. Pull out the access panel (1) from the center pillar molding.
2. Remove the seat belt bolts from the center pillar.
3. Remove the cap (2).
4. Remove the upper center pillar upward.
4. Remove the upper center pillar molding, right side.
1. Pull out the panel from the center pillar molding.
2. Remove the seat belt bolts from the center pillar.
3. Remove the cap.
4. Remove the upper center pillar upward.
