Door Lock Cylinder: Service and Repair

Front Side Door Lock Cylinder Replacement

Removal Procedure

1. Remove the front side door panel.

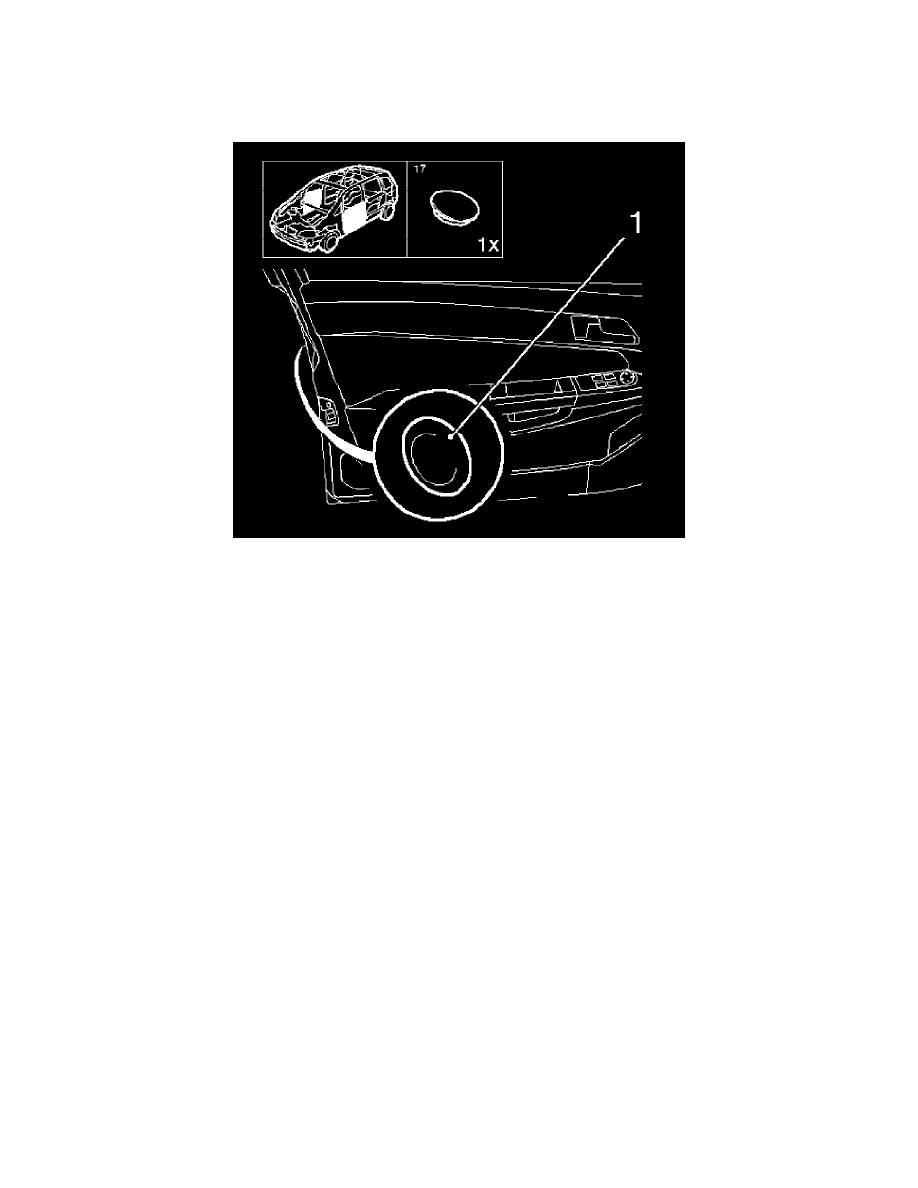

Remove the access panel (1) with a plastic wedge.
