Aura L4-2.4L Hybrid (2009)
Air Door Actuator / Motor: Locations

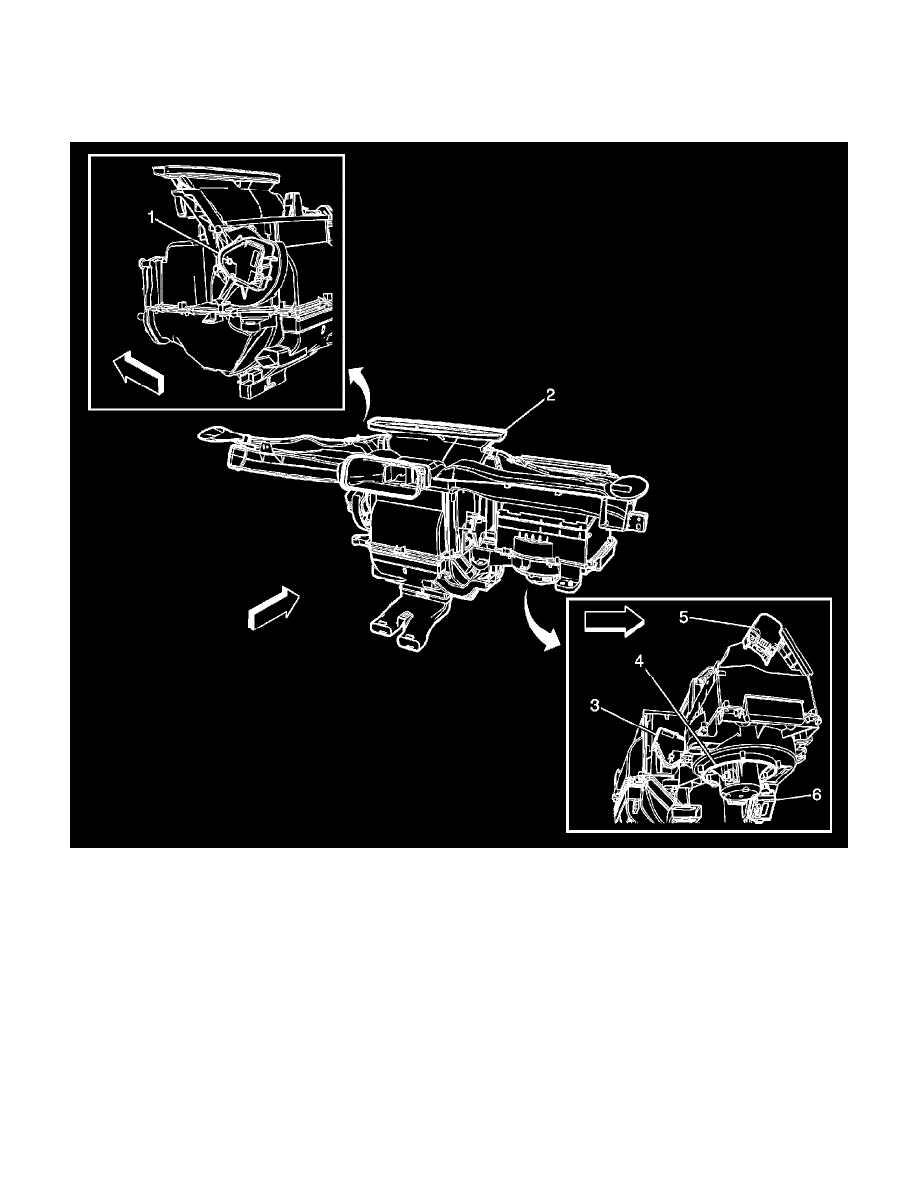

Instrument Panel/Center Console Component Views
HVAC Components 2 of 3
1 - Mode Actuator
2 - HVAC Module Assembly
3 - Air Temperature Actuator
4 - Blower Motor
5 - Recirculation Actuator
6 - Blower Motor Control Module (C68)
