ION L4-2.0L SC (2007)
Front Bumper Bracket: Service and Repair
Impact Bar Bracket Replacement - Front Bumper
REMOVAL PROCEDURE
CAUTION: To avoid personal injury when exposed to welding flashes or to galvanized (Zinc Oxide) metal toxic fumes while grinding/cutting
on any type of metal or sheet molded compound, you must work in a properly ventilated area, wearing an approved respirator, eye protection,
earplugs, welding gloves, and protective clothing.
1. Disable the SIR system.
2. Disconnect the negative battery cable.
3. Remove all related panels and components.
4. Repair as much of the damage as possible.
5. Remove the sealers and anti-corrosion materials from the repair area, as necessary.

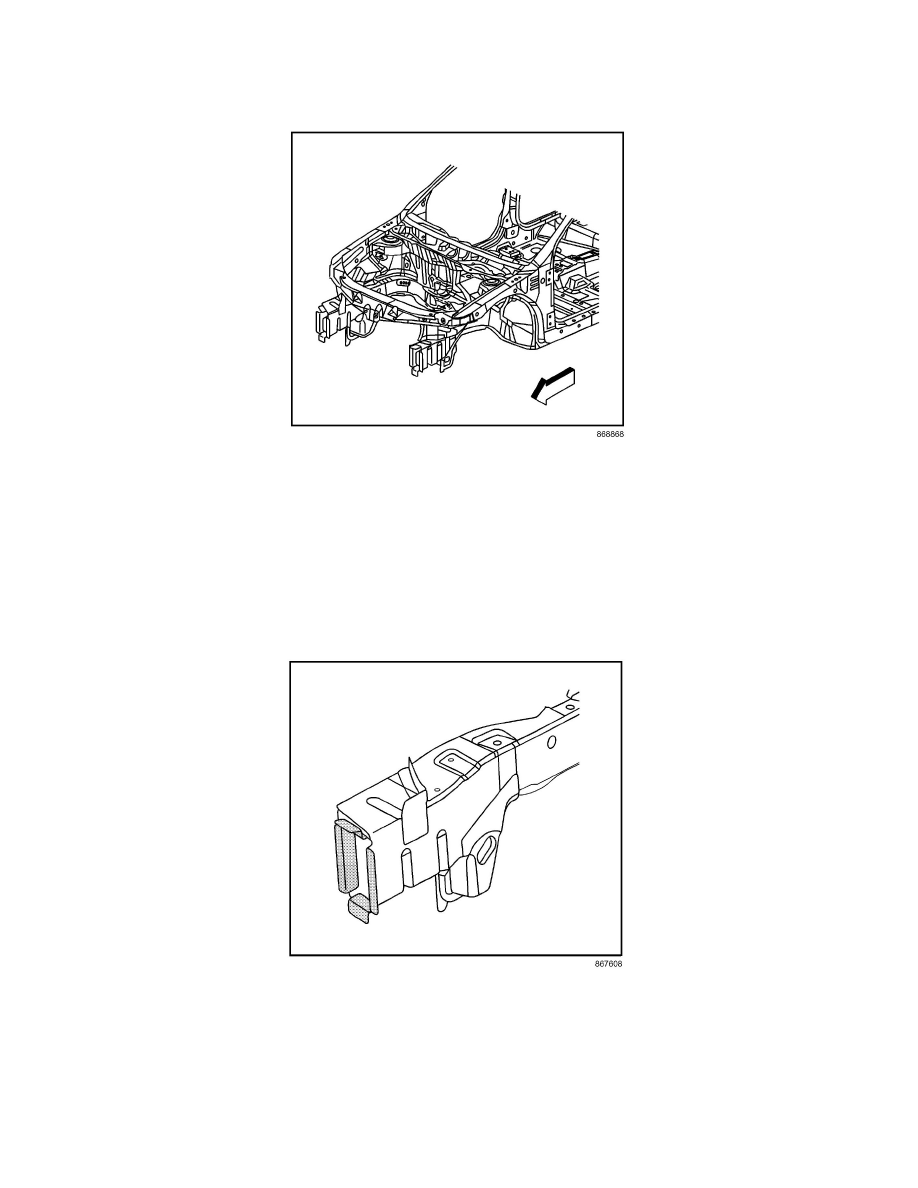

IMPORTANT: Note the number and location of the factory welds for installation of the impact bar bracket - front bumper
6. Locate and drill out all the factory welds from the outside surface of the rail.
