Saturn Workshop Service and Repair Manuals > VUE 2WD V6-3.5L VIN 4 (2004) > Starting and Charging | Starting System | Starter Relay | Component Information | Diagrams

Power and Ground Distribution > < Diagram Information and Instructions|Page 6503

Page 1

background image

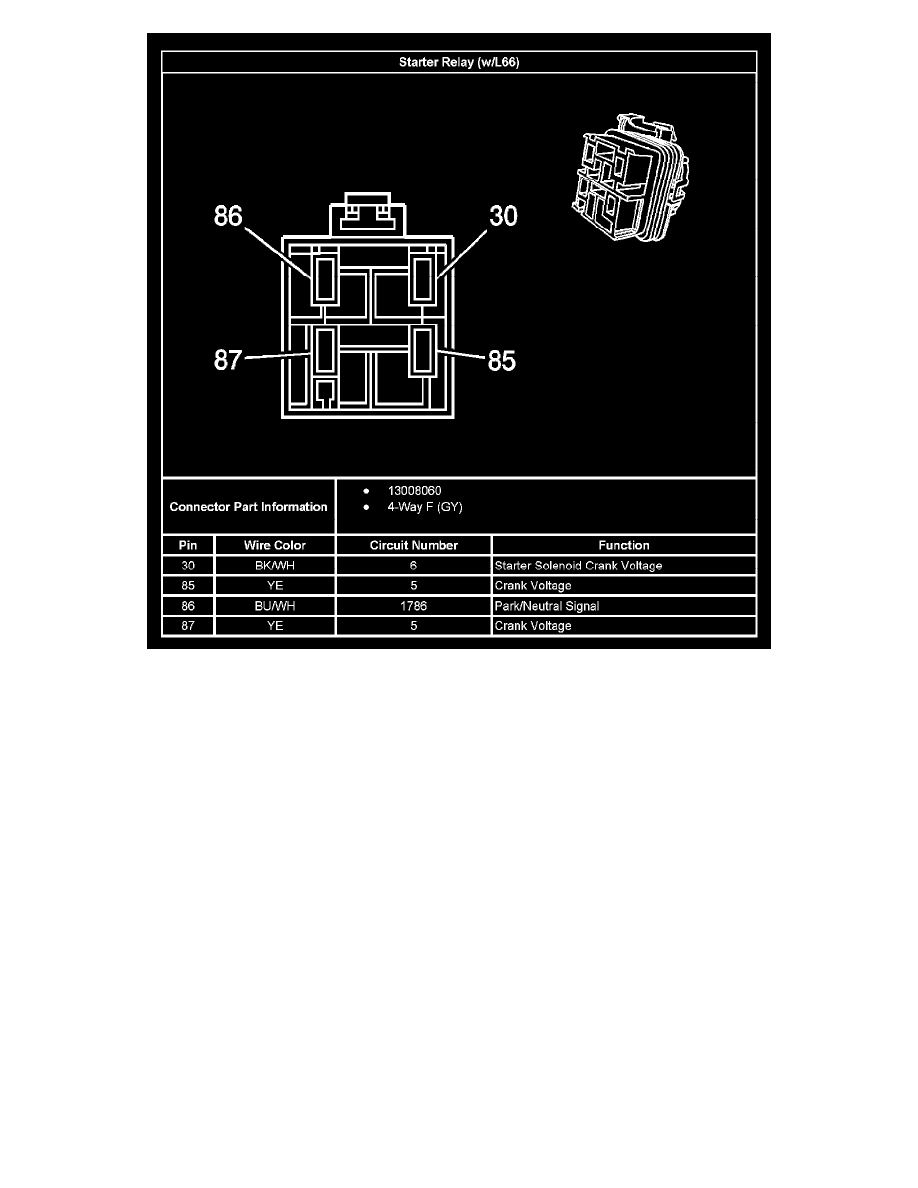

Starter Relay

Starting and Charging
Starting System
Starter Relay
Component Information
Diagrams

Power and Ground Distribution > < Diagram Information and Instructions|Page 6503
