VUE AWD L4-2.2L VIN D (2005)

  • Relays and Modules
  • Relays and Modules - Brakes and Traction Control
  • Electronic Brake Control Module
  • Component Information
  • Locations
  • ABS Component Views

Page 1
background image

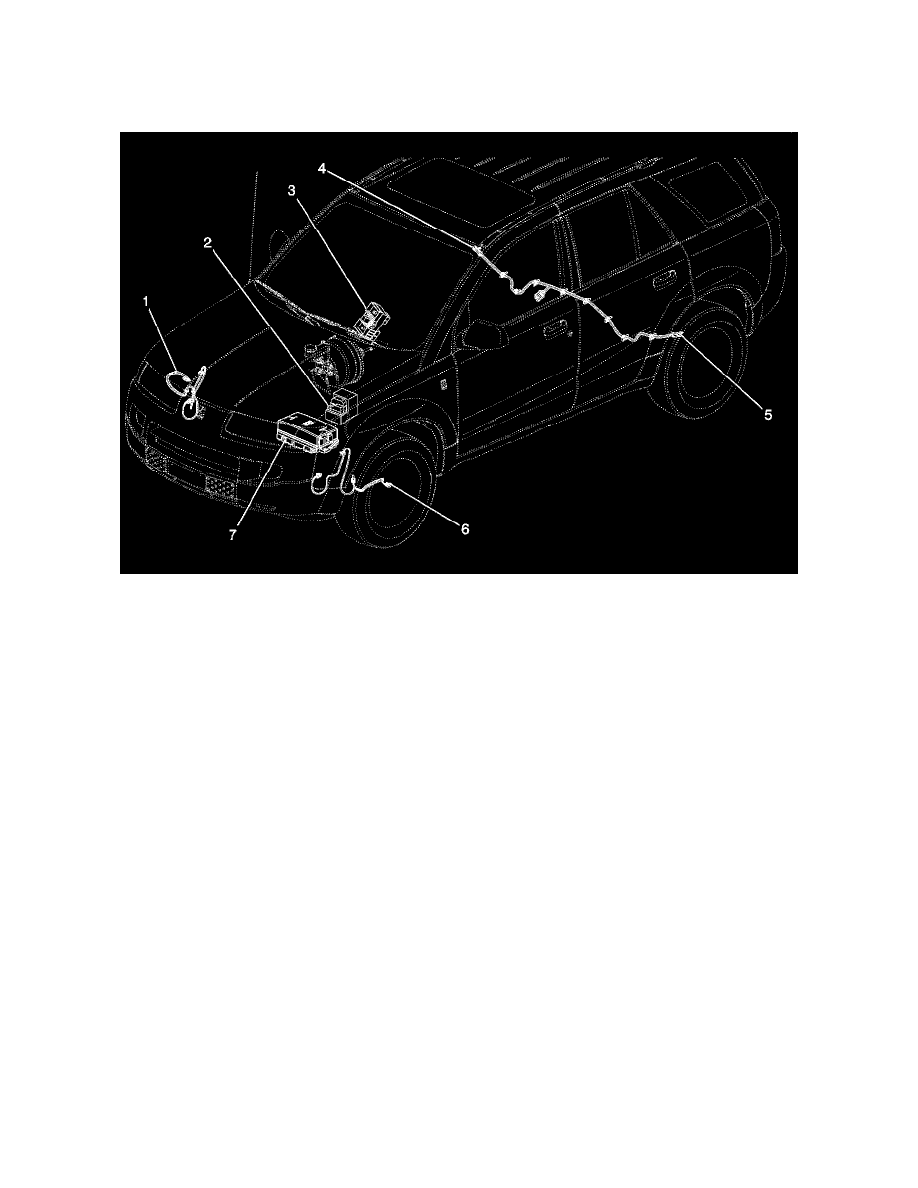

Electronic Brake Control Module: Locations
ABS Component Views

ABS Component Views

1 - Wheel Speed Sensor (WSS) - RF
2 - Electronic Brake Control Module (EBCM)
3 - Fuse Block - I/P
4 - Wheel Speed Sensor (WSS) - RR
5 - Wheel Speed Sensor (WSS) - LR
6 - Wheel Speed Sensor (WSS) - LF
7 - Fuse Block - Underhood
