VUE AWD V6-3.5L (2007)

Page 1
background image

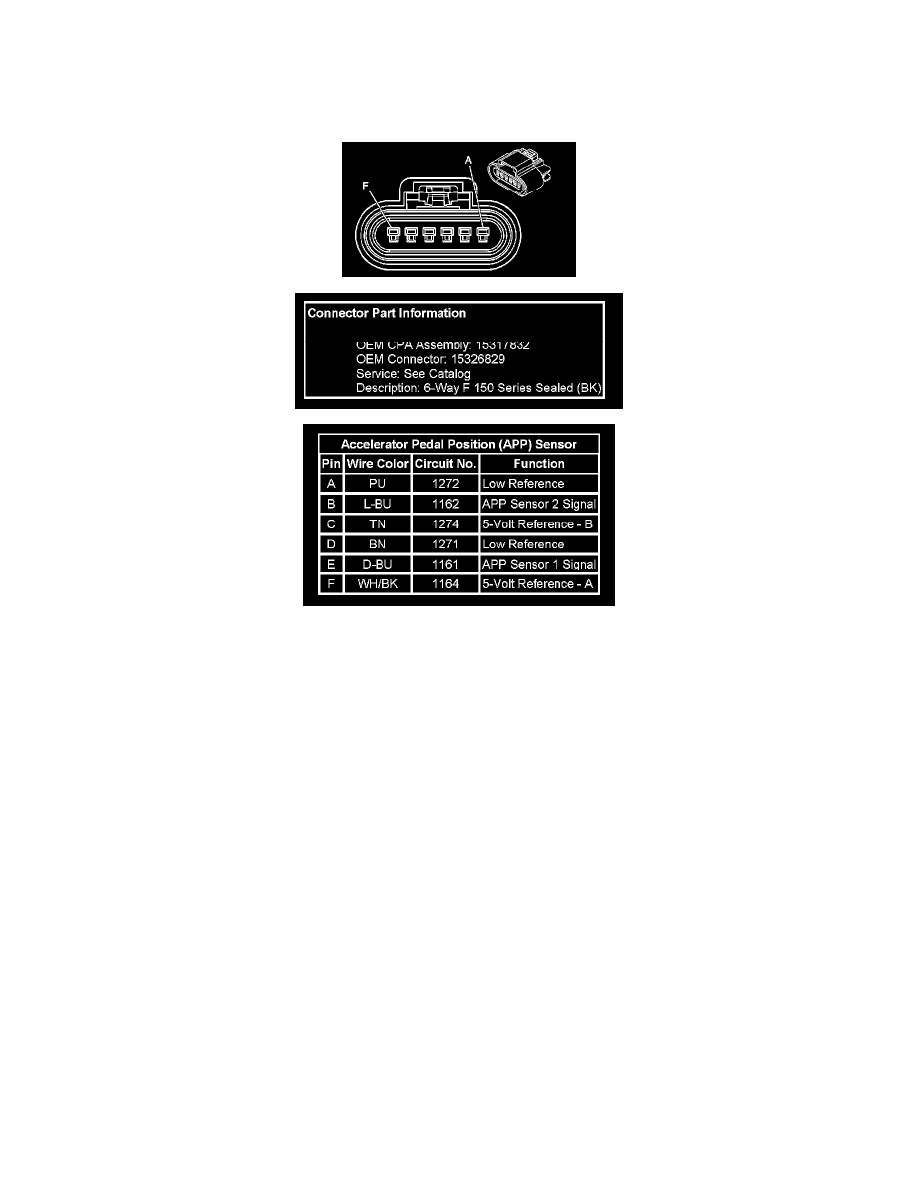

Accelerator Pedal Position Sensor: Diagrams

Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor
