VUE AWD V6-3.5L (2007)
Notice: Refer to Fastener Notice.

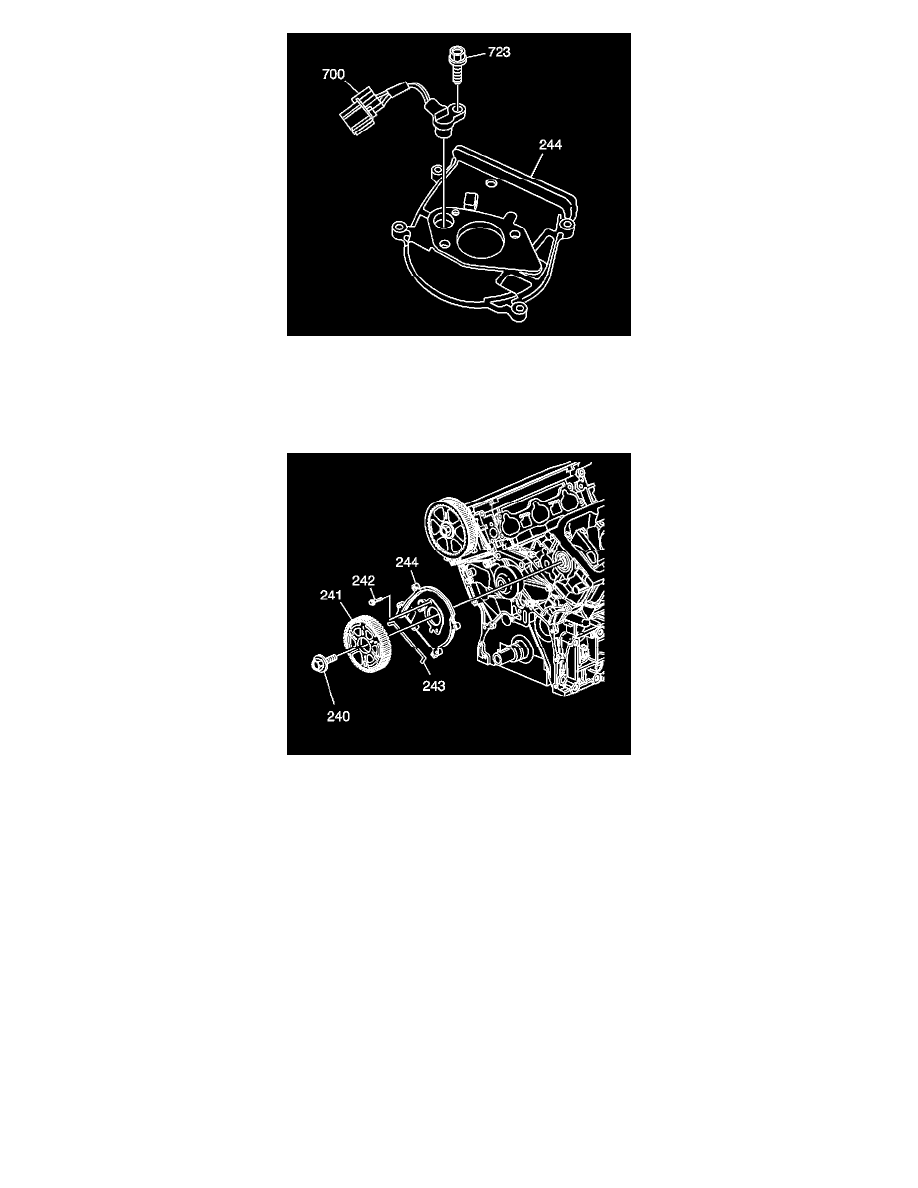

1. Install the camshaft position (CMP) sensor (700) and bolt (723).
Tighten the bolt to 4 N.m (35 lb in).
2. Install the cover (244), NEW seal (243) and bolts (242).
Tighten the bolts to 22 N.m (16 lb ft).
3. Install the left camshaft sprocket.
