VUE AWD V6-3.5L (2007)
Camshaft Position Sensor: Locations

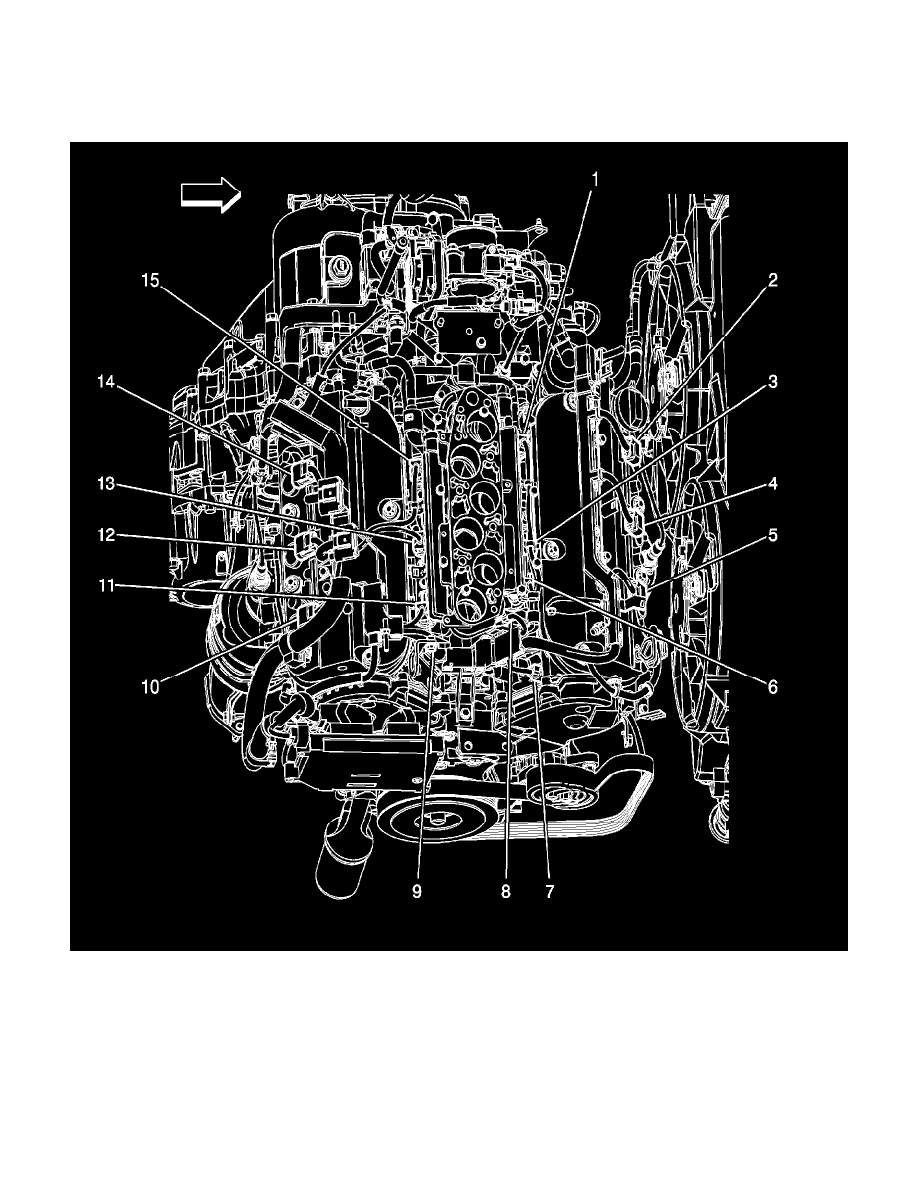

Engine Controls Component Views
Top of Engine (L66)
1 - Fuel Injector 6
2 - Ignition Coil 6
3 - Fuel Injector 5
4 - Ignition Coil 5
5 - Ignition Coil 4
6 - Fuel Injector 4
7 - Camshaft Position (CMP) Sensor
8 - Knock Sensor (KS)
9 - G109
10 - Ignition Coil 1
