Control Module HVAC: Diagrams

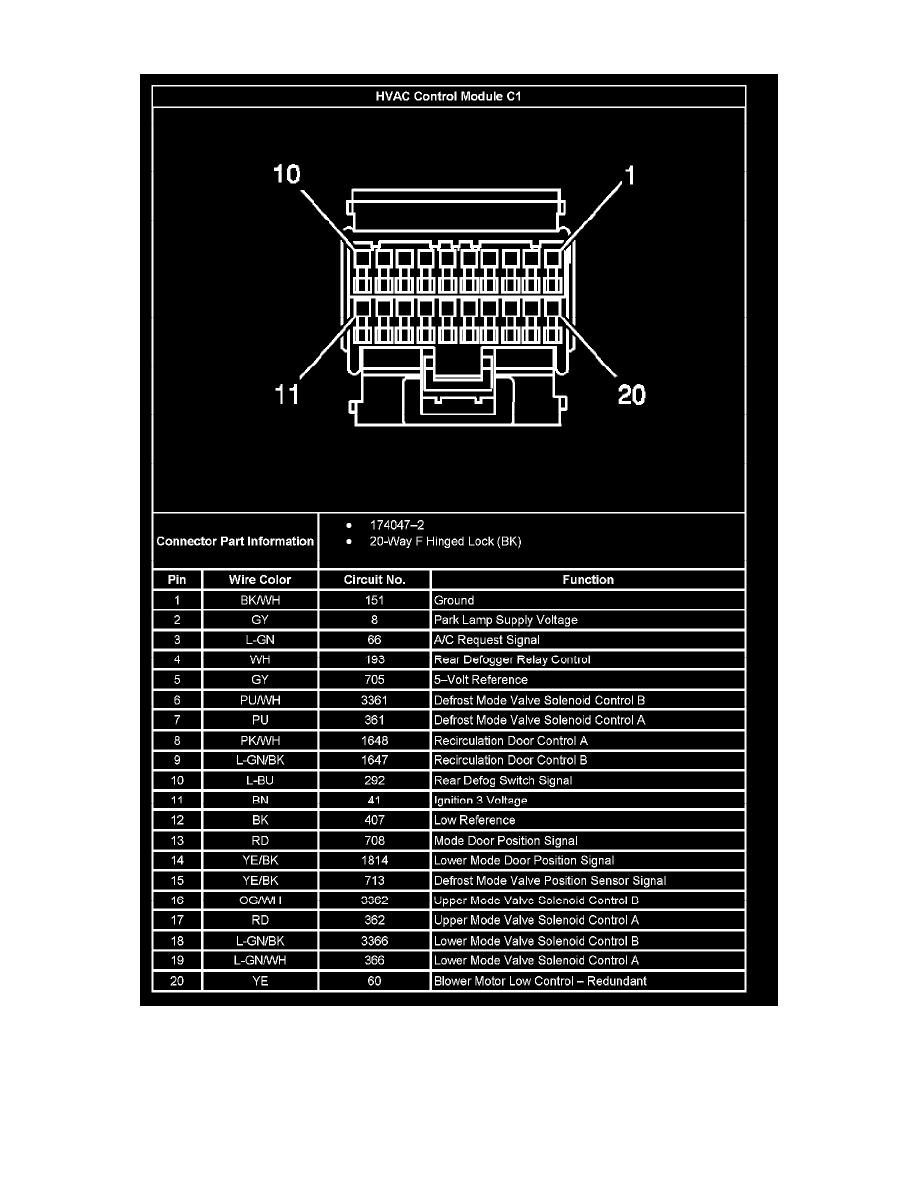

HVAC Control Module C1

Heating and Air Conditioning
Control Module HVAC
Component Information
Diagrams
