Central Control Module: Diagrams

Component Connector End Views

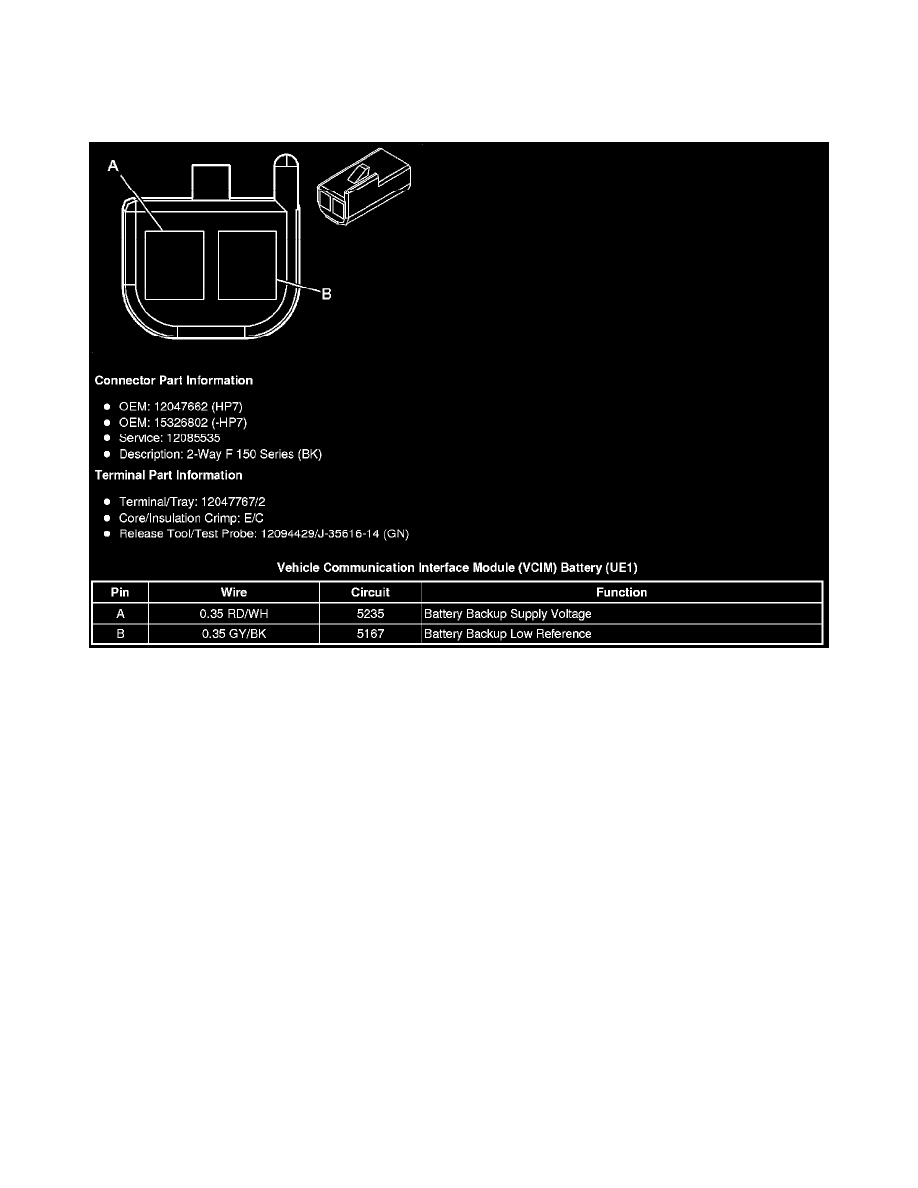

Vehicle Communication Interface Module (VCIM) Battery (UE1)

Vehicle Communications Interface Module (VCIM) X1 (UE1)
