VUE FWD V6-3.6L Hybrid (2009)

  • Body and Frame
  • Fender
  • Front Fender
  • Front Fender Liner
  • System Information
  • Service and Repair

Page 1
background image

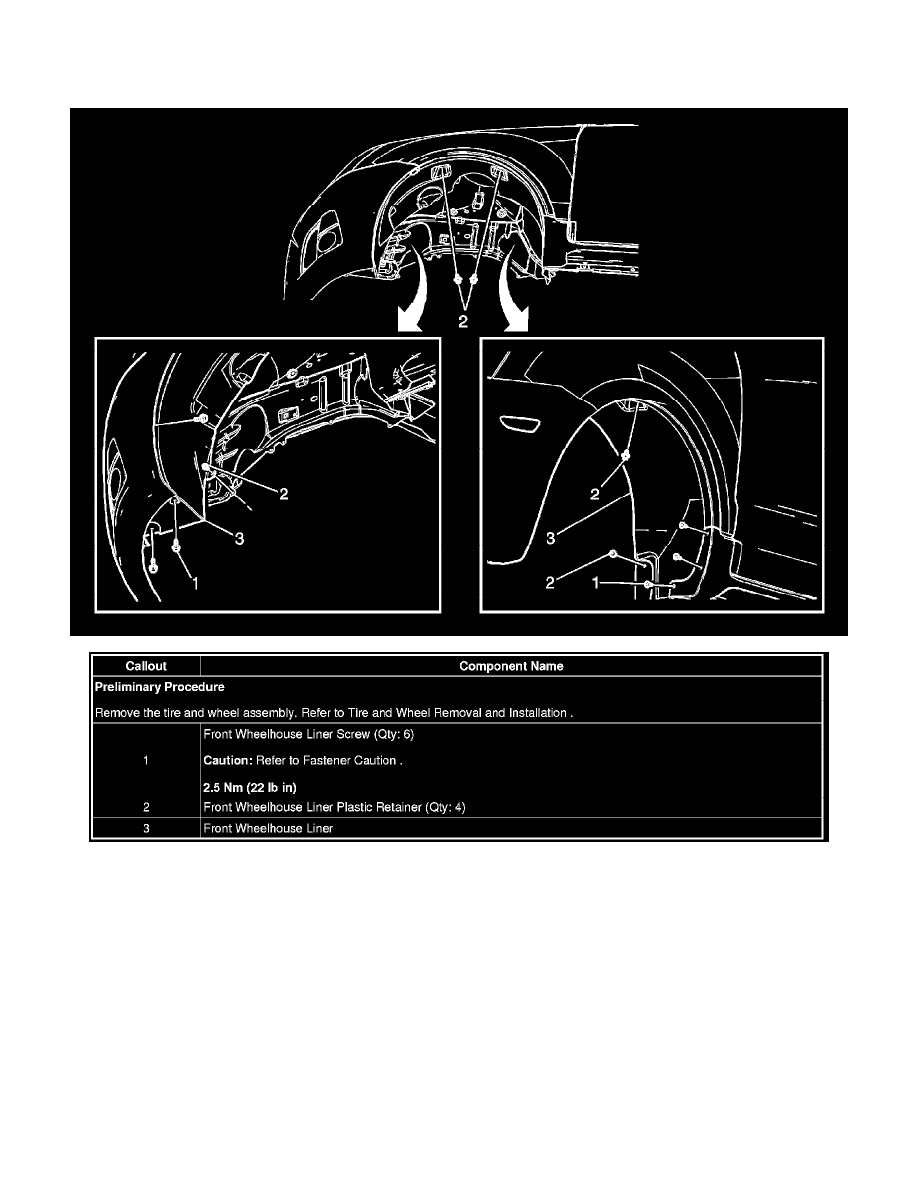

Front Fender Liner: Service and Repair

Front Wheelhouse Liner Replacement

  • Body and Frame
  • Fender
  • Front Fender
  • Front Fender Liner
  • System Information
  • Service and Repair
