Seat Heater: Connector Views

Component Connector End Views

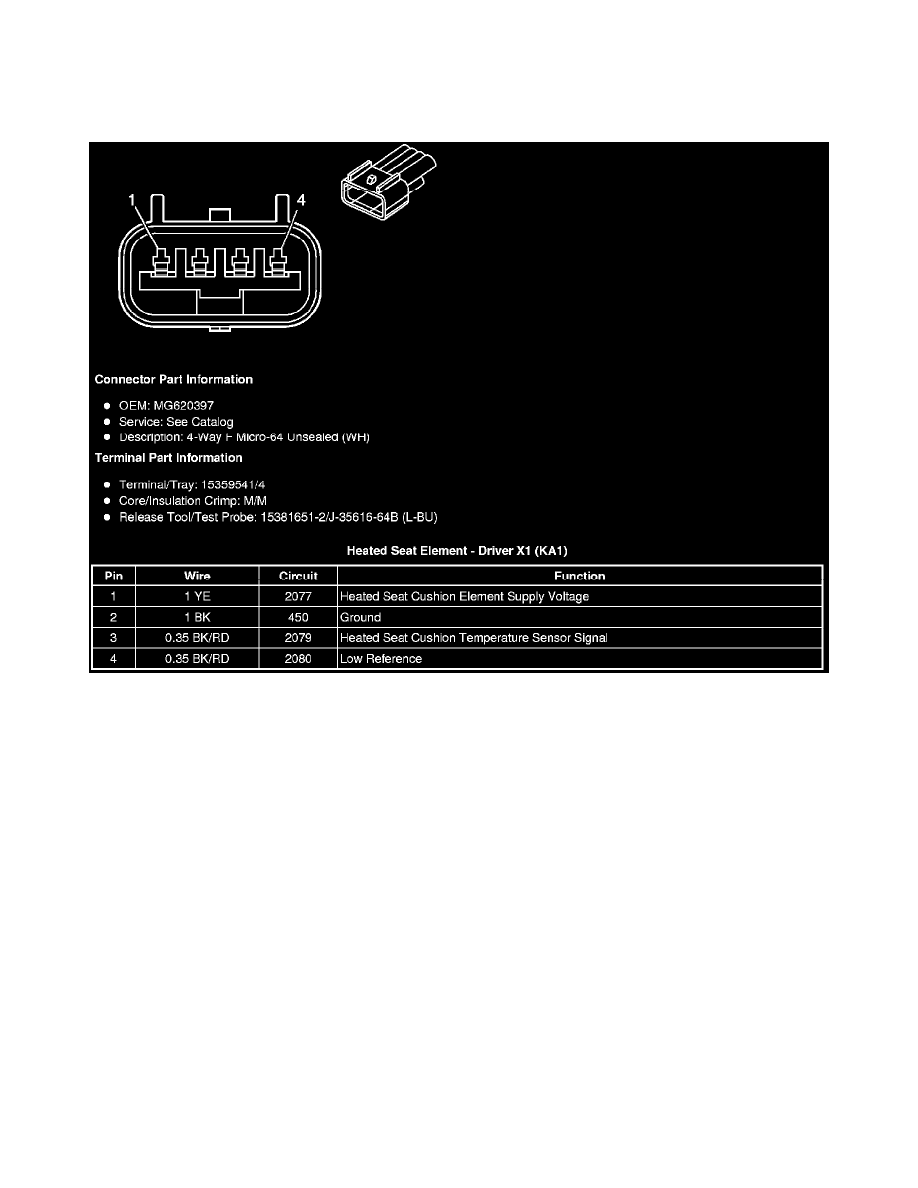

Heated Seat Element - Driver X1 (KA1)

Heated Seat Element - Driver X2 (KA1)
