VUE FWD V6-3.6L Hybrid (2009)
Cabin Temperature Sensor / Switch: Locations

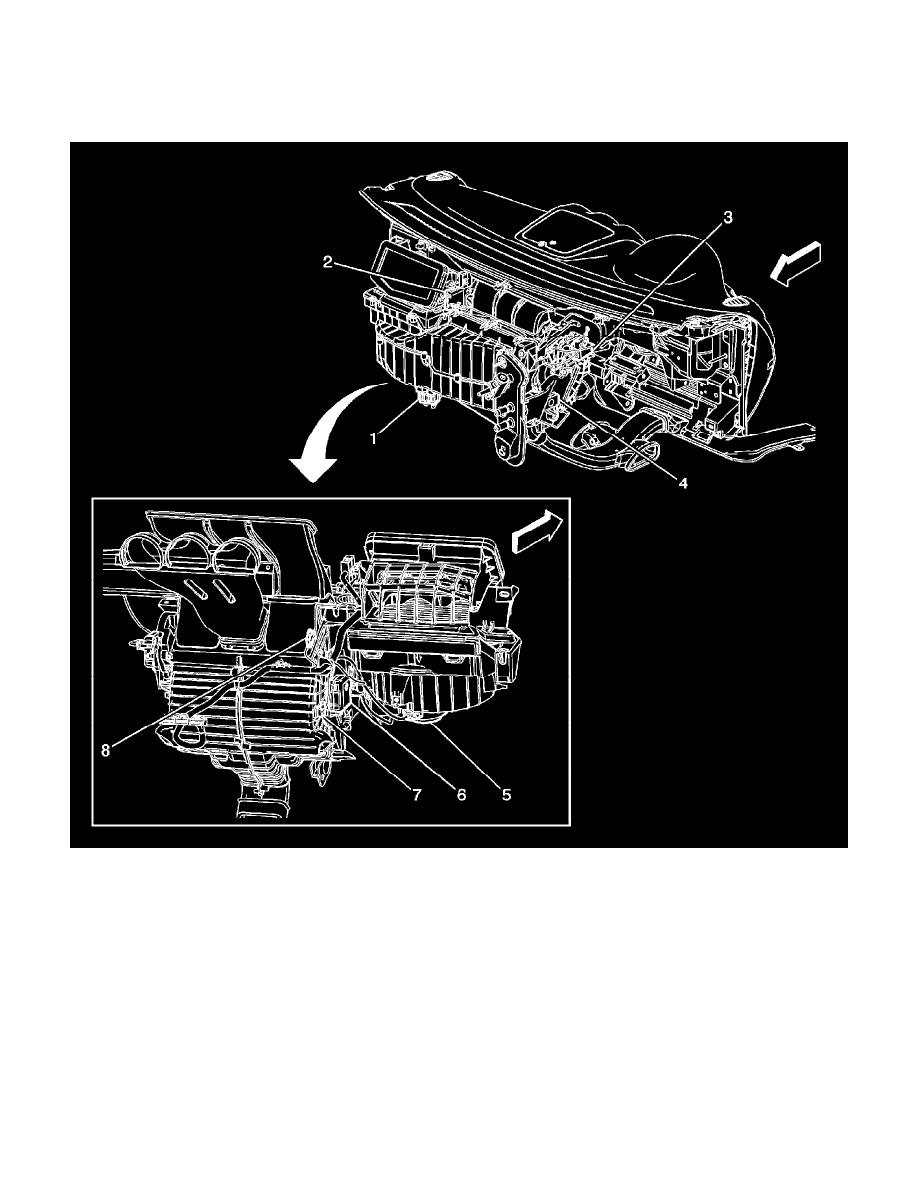

Instrument Panel/Center Console Component Views
HVAC Module Components
1 - Blower Motor Control Module
2 - Recirculation Actuator
3 - Mode Actuator
4 - Evaporator Temperature Sensor
5 - Blower Motor
6 - Air Temperature Actuator
7 - Air Temperature Sensor - Lower ( C68)
8 - Air Temperature Sensor - Upper ( C68)
