VUE FWD V6-3.6L Hybrid (2009)
Camshaft Position Sensor: Service and Repair
Camshaft Position Sensor Replacement - Bank 2 (Left Side) Exhaust
Camshaft Position Sensor Replacement - Bank 2 (Left Side) Exhaust
Removal Procedure
1. Remove the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side (See: Engine, Cooling and Exhaust/Engine/Drive
Belts, Mounts, Brackets and Accessories/Engine Mount/Service and Repair).

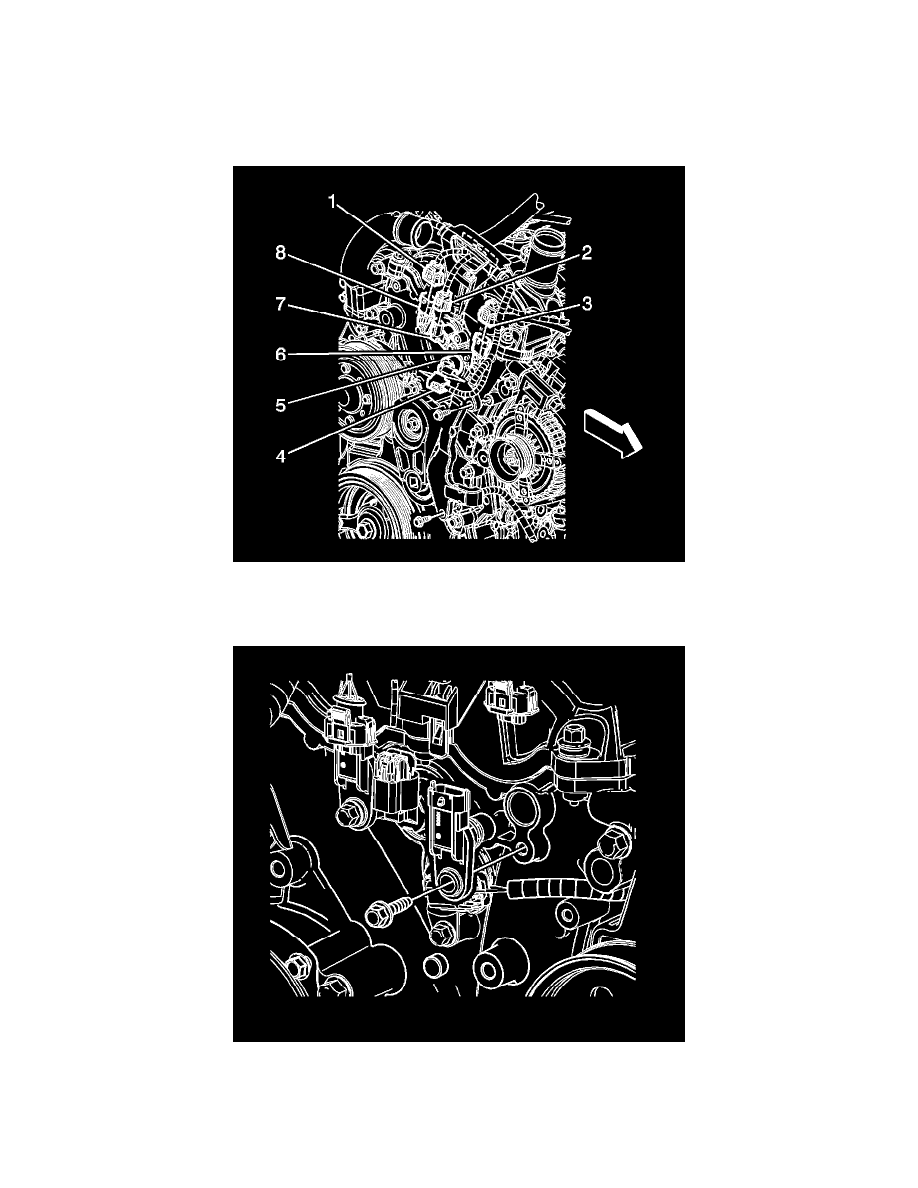

2. Disconnect the engine wiring harness electrical connector (3) from the bank 2 exhaust camshaft position (CMP) sensor (6).
3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.
Installation Procedure
