VUE FWD V6-3.6L Hybrid (2009)
Crankshaft Position Sensor: Locations
Powertrain Component Views

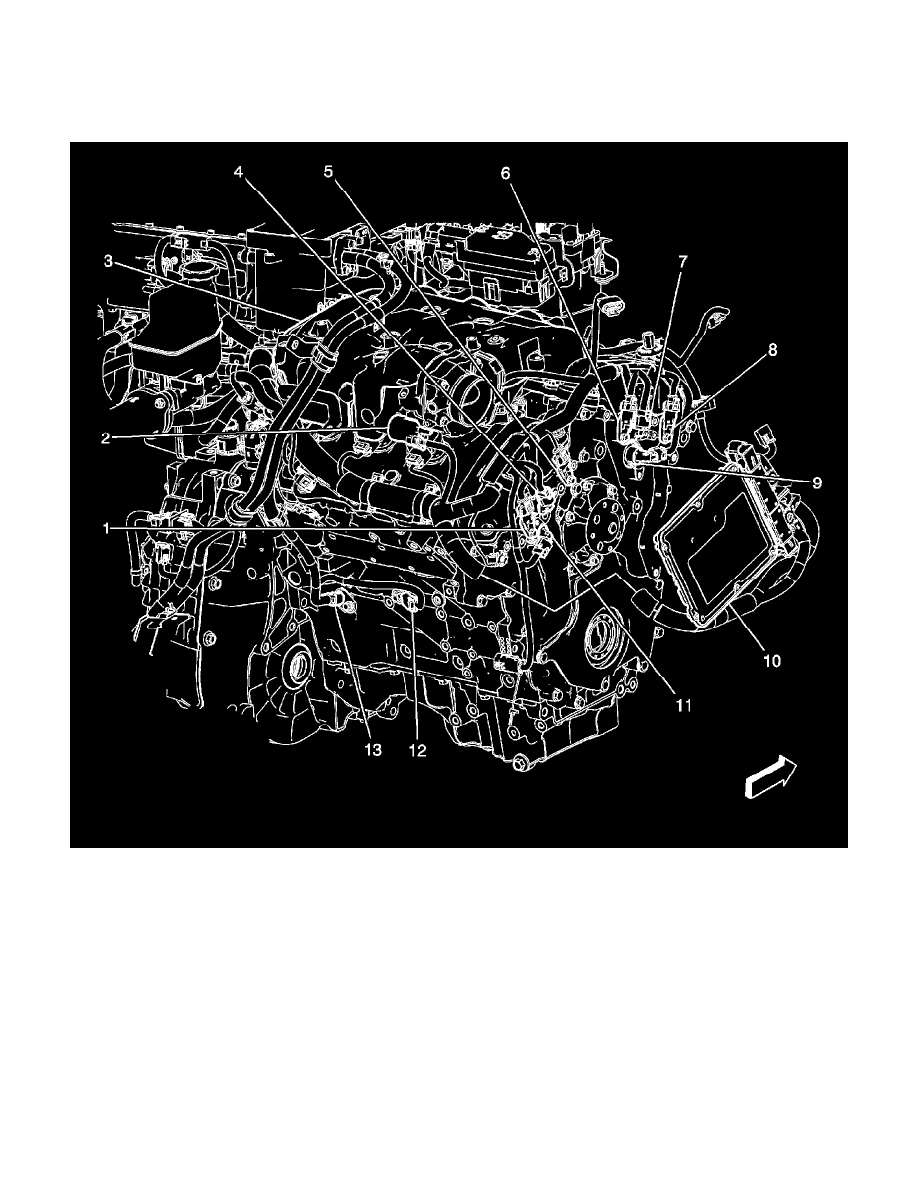

Engine-Right Rear (LCS)
1 - Camshaft Position (CMP) Sensor - Bank 1 Exhaust
2 - Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
3 - Control Solenoid Valve Assembly
4 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake
5 - Camshaft Position (CMP) Sensor - Bank 1 Intake
6 - Camshaft Position (CMP) Sensor - Bank 2 Intake
7 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust
8 - Camshaft Position (CMP) Sensor - Bank 2 Exhaust
9 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust
10 - Engine Control Module (ECM)
11 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust
12 - Knock Sensor (KS) Bank 1
13 - Crankshaft Position (CKP) Sensor
