Electronic Throttle Control Module: Diagrams

Component Connector End Views

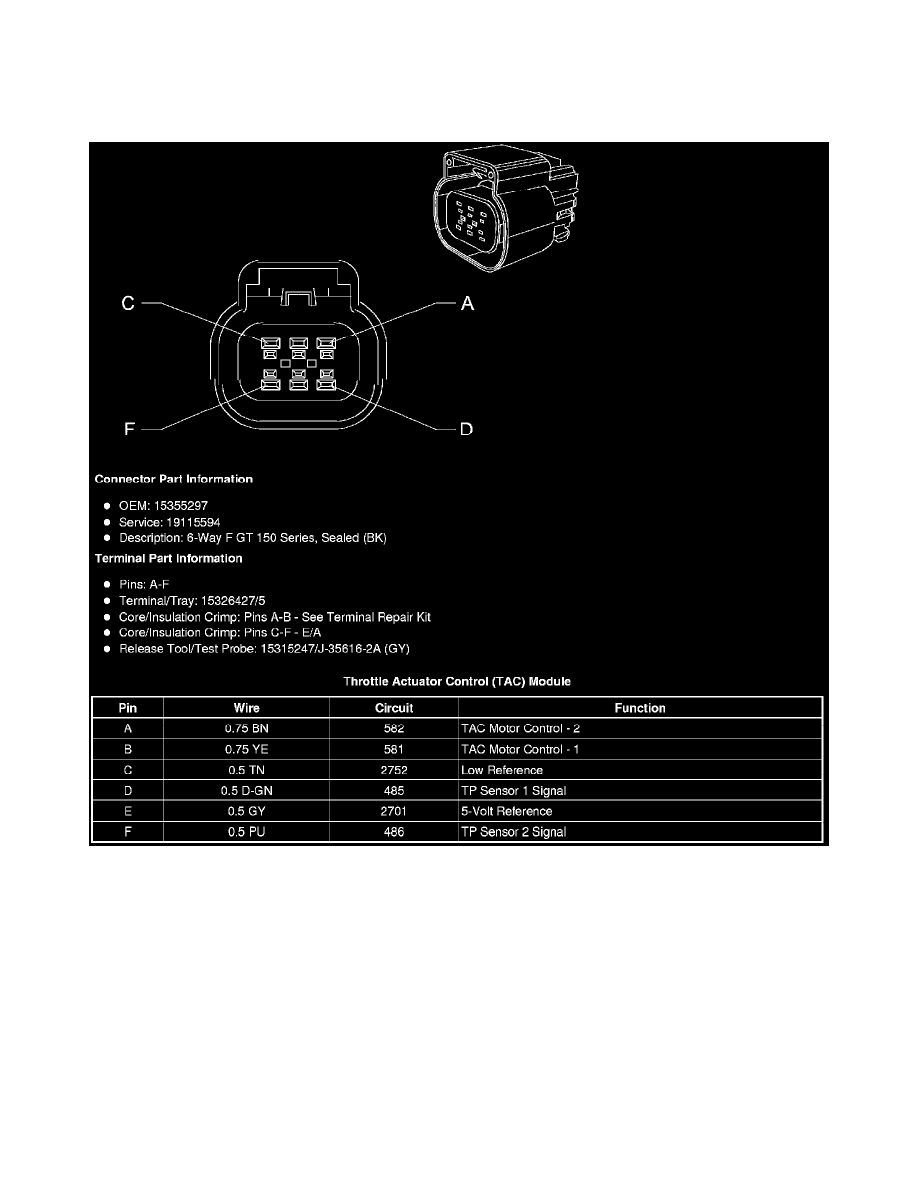

Throttle Actuator Control (TAC) Module

Powertrain Management
Computers and Control Systems
Electronic Throttle Control Module
Component Information
Diagrams
