Oxygen Sensor: Diagrams

Component Connector End Views

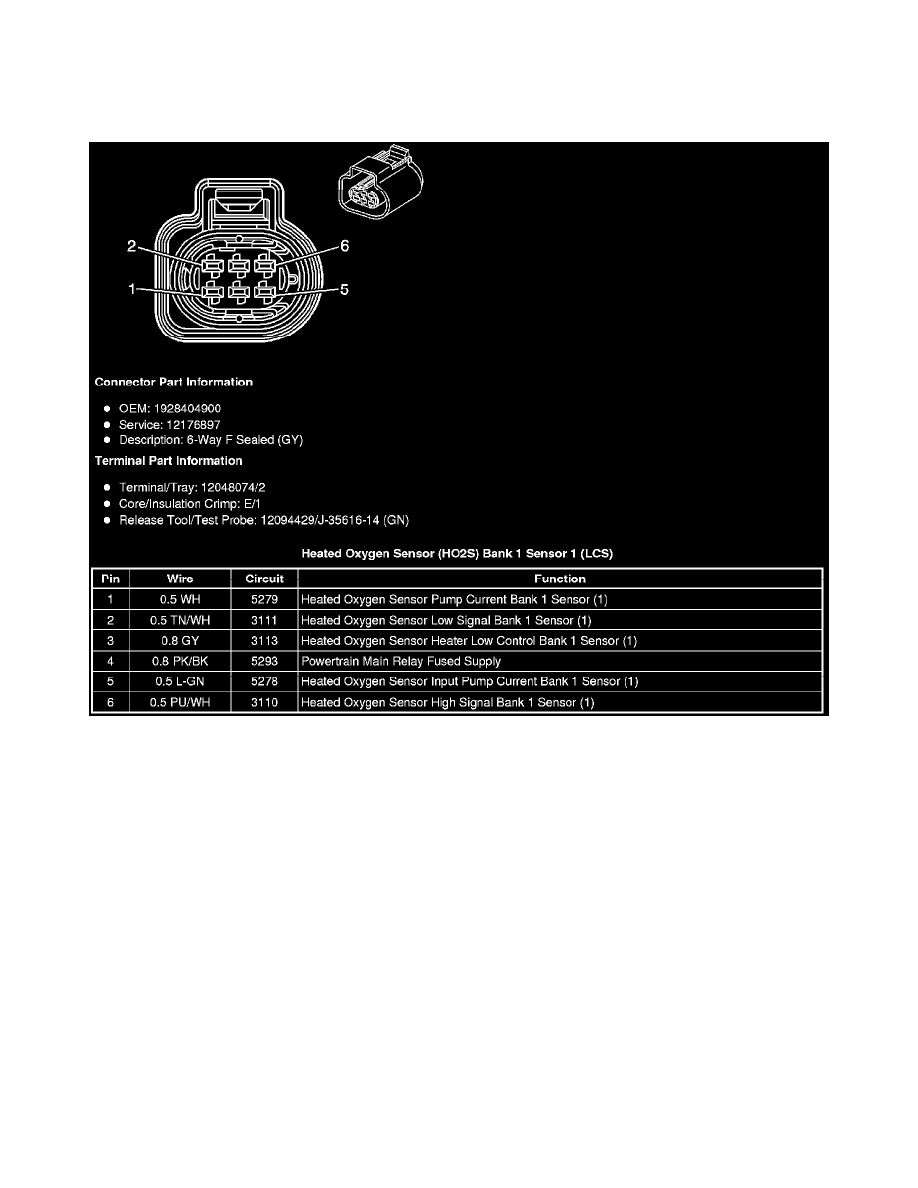

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LCS)

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LCS)
