VUE FWD V6-3.6L Hybrid (2009)
Evaporative Emissions Hose: Service and Repair
Evaporative Emission Canister Purge Tube Replacement
Evaporative Emission Canister Purge Tube Replacement
Removal Procedure
1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LY7) (See: Fuel Delivery and Air Induction/Fuel
Injector/Service and Repair/Fuel Injector Sight Shield Replacement)Fuel Injector Sight Shield Replacement (LCS) (See: Fuel Delivery and Air
Induction/Fuel Injector/Service and Repair/Fuel Injector Sight Shield Replacement).
2. Disconnect the evaporative emission (EVAP) canister purge line quick connect fitting from the intake manifold. Refer to Plastic Collar Quick
Connect Fitting Service (See: Fuel Delivery and Air Induction/Fuel Line Coupler/Service and Repair/Plastic Collar Quick Connect Fitting
Service).
3. Disconnect the EVAP canister purge line quick connect fitting from the EVAP canister purge solenoid valve. Refer to Plastic Collar Quick
Connect Fitting Service (See: Fuel Delivery and Air Induction/Fuel Line Coupler/Service and Repair/Plastic Collar Quick Connect Fitting
Service).

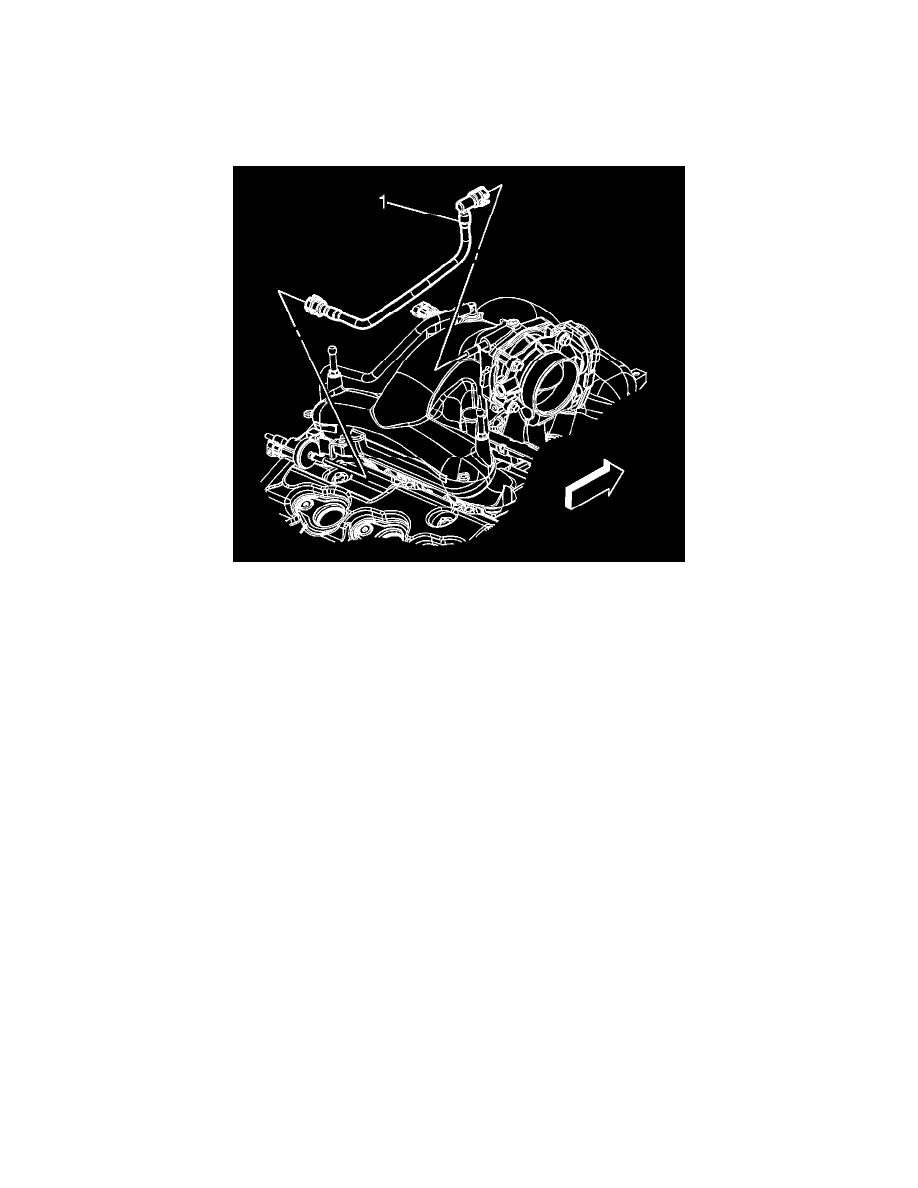

4. Remove the EVAP canister purge line (1) from the vehicle.
Installation Procedure
