VUE FWD V6-3.6L Hybrid (2009)
Fuel Supply Line: Service and Repair
Fuel Feed Intermediate Pipe Replacement
Fuel Feed Intermediate Pipe Replacement
Removal Procedure
1. Remove the drive motor generator power inverter module. Refer to Drive Motor Generator Power Inverter Module Removal and Installation (
See: Hybrid Drive Systems/Power Control System/Drive Motor Control Module/Service and Repair/Drive Motor Generator Power Inverter
Module Removal and Installation).
2. Remove the high pressure pump shield. Refer to Fuel Pipe Shield Replacement (See: ).
3. Relieve fuel system pressure. Refer to Fuel Pressure Relief (with CH 48027-100) (See: Fuel Filter/Fuel Pressure Release/Service and Repair)Fuel
Pressure Relief (w/o CH 48027-100) (See: Fuel Filter/Fuel Pressure Release/Service and Repair).
4. Remove the foam insulator from the pipes.

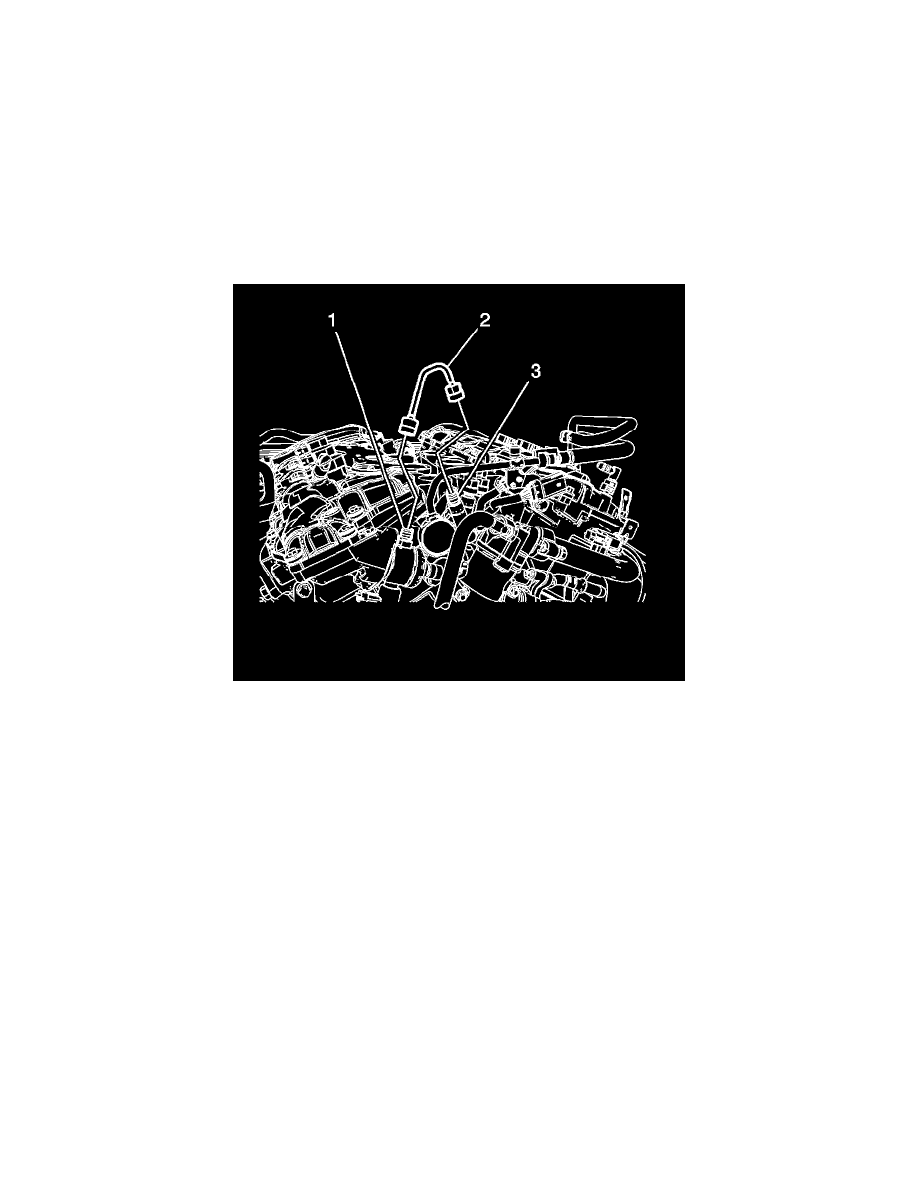

5. Loosen the high pressure pipe fitting to the high pressure fuel pump (1).
6. Loosen the high pressure pipe fitting to the left fuel rail (3).
7. Remove the high pressure fuel pipe (2) from the vehicle. Discard the pipe.
Installation Procedure
1. Ensure that the high pressure fuel pipe, fuel rail fitting and fuel pump fitting are clean and dry prior to assembly.
