xB L4-1.5L (1NZ-FE) (2004)

Page 2
background image

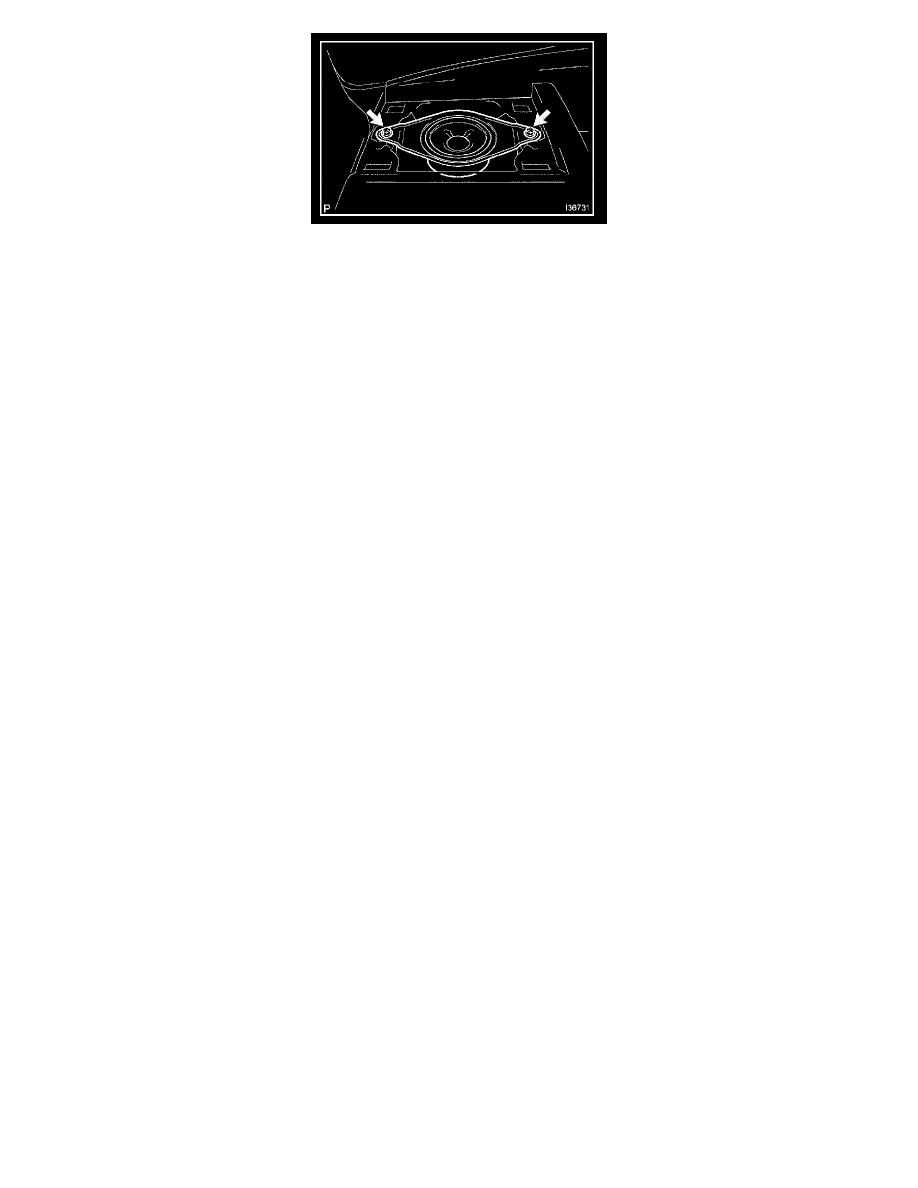

2. REMOVE FRONT NO.2 SPEAKER ASSY

a. Remove the 2 bolts and the front No.2 speaker assy.
b. Disconnect the connector.
