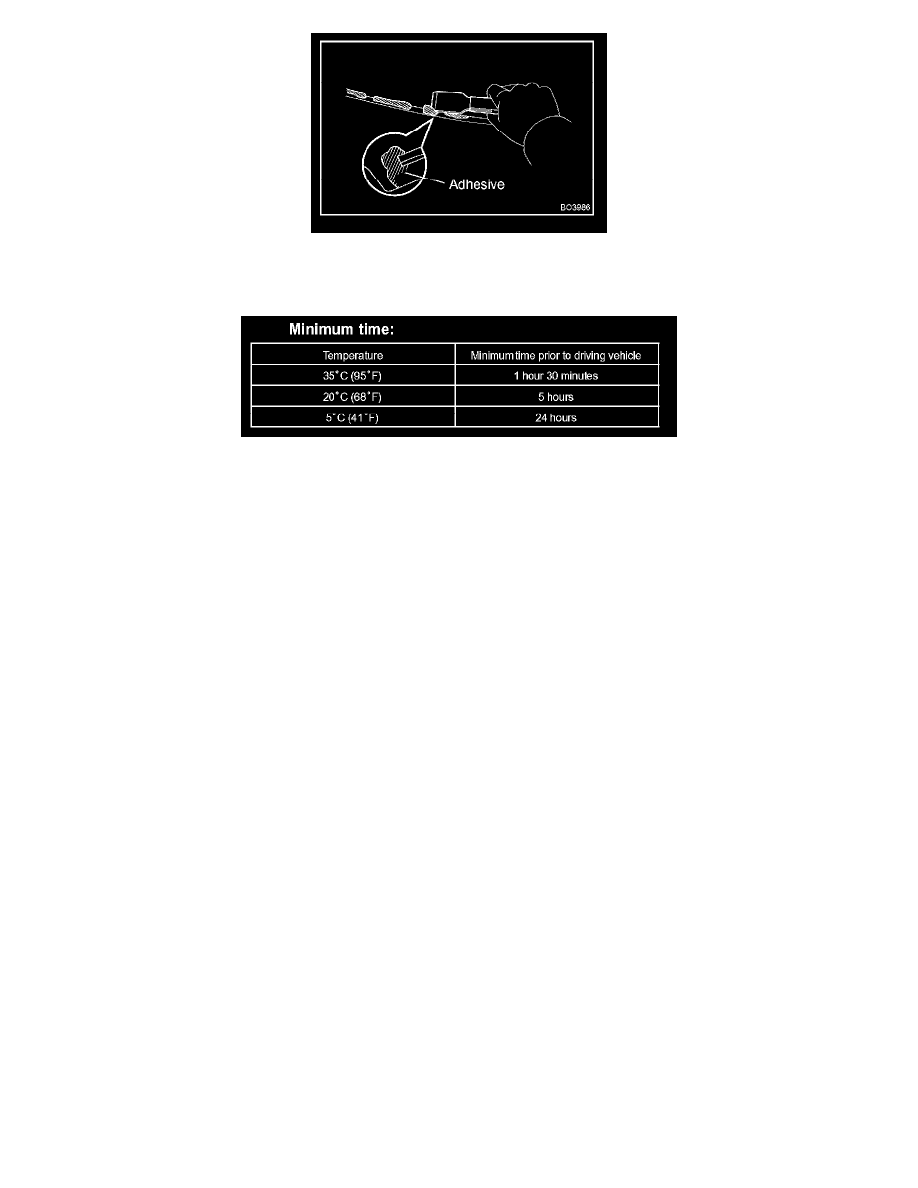

3. Using a scraper, remove any excess or protruding adhesive.

HINT:  Apply adhesive onto the glass rim.

NOTE:  Take care not to drive the vehicle for the time described in the table.

7. CHECK FOR LEAKS AND REPAIR

a. Conduct a leak test after the adhesive has completely hardened.
b. Seal any leaks with auto glass sealer.
