Traction Control Indicator Lamp: Testing and Inspection
Slip Indicator Light Circuit

SLIP INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC & VSC operation.

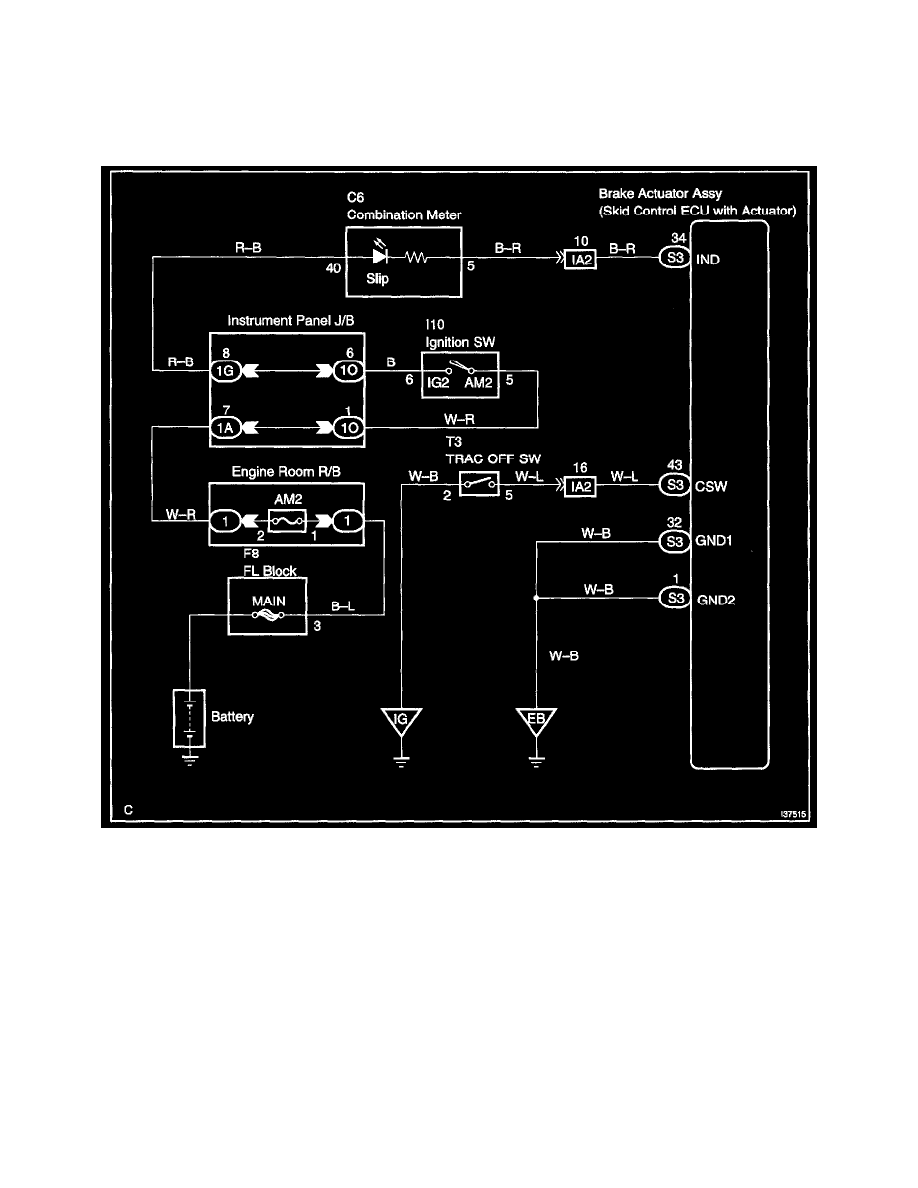

Wiring Diagram
