xB L4-1.5L (1NZ-FE) (2004)
/Page-330001.png)
Drive Belt: Testing and Inspection

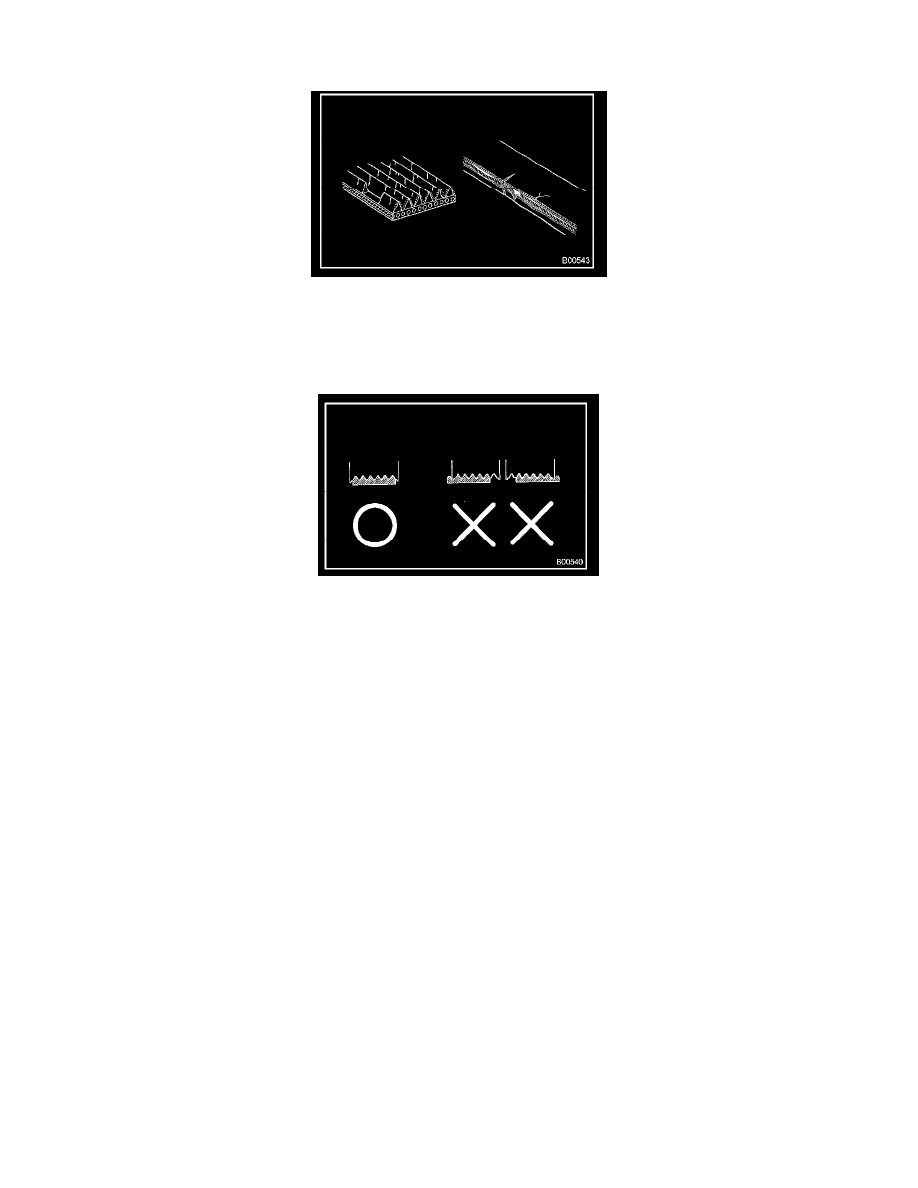

INSPECT DRIVE BELT
a. Visually check the belt for excessive wear, frayed cords etc.
HINT:
-
If any defect is found, replace the drive belt.
-
Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.
b. Check that it fits properly in the ribbed grooves.
HINT: Check by hand to confirm that the belt is not slipped out of the groove on the bottom of the pulley.
