xB L4-1.5L (1NZ-FE) (2004)
/Page-1247001.png)

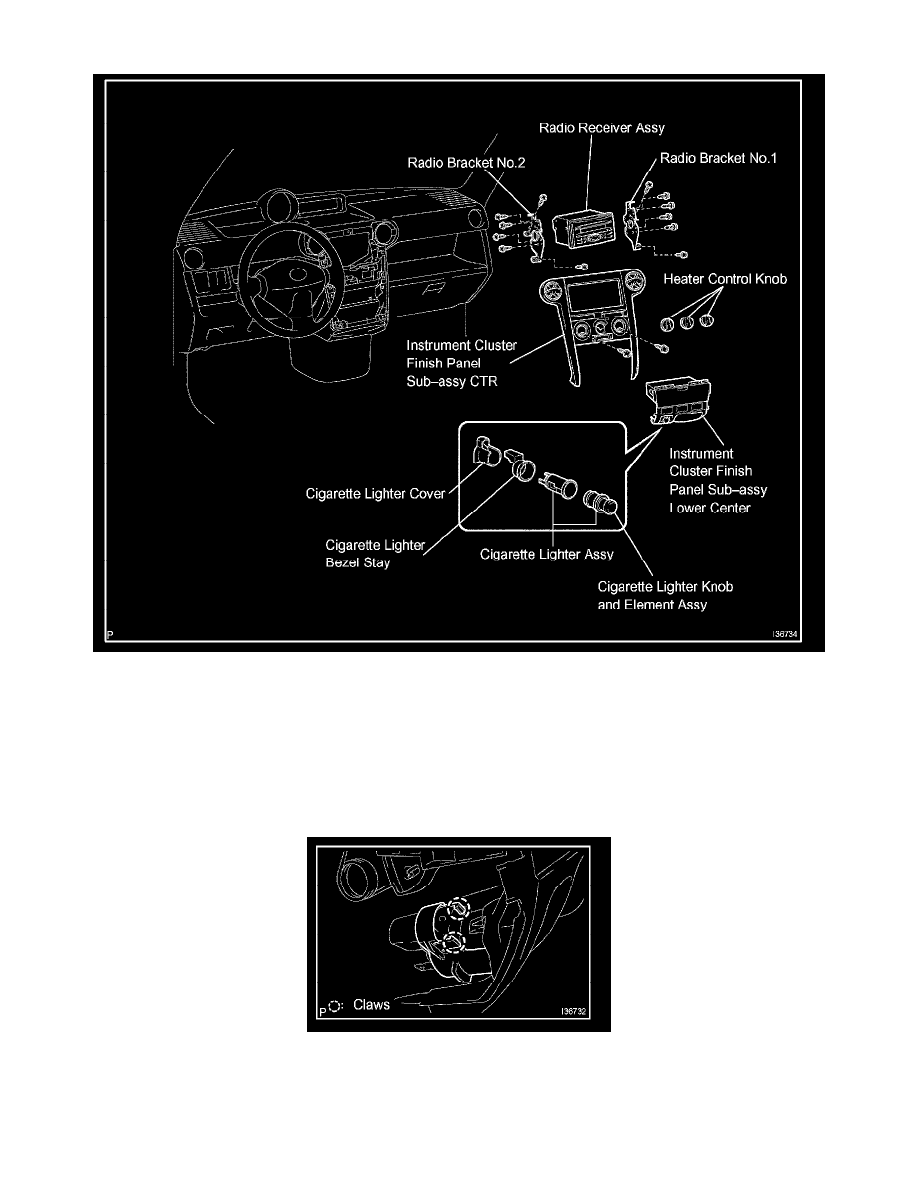

Cigarette Lighter: Service and Repair
Audio & Visual System
CIGARETTE LIGHTER ASSY
REPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CTR
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER
4. REMOVE CIGARETTE LIGHTER COVER
a. Disengage the 2 claws and remove the cigarette lighter cover.
5. REMOVE CIGARETTE LIGHTER ASSY
