xB L4-1.5L (1NZ-FE) (2004)
/Page-579002.png)

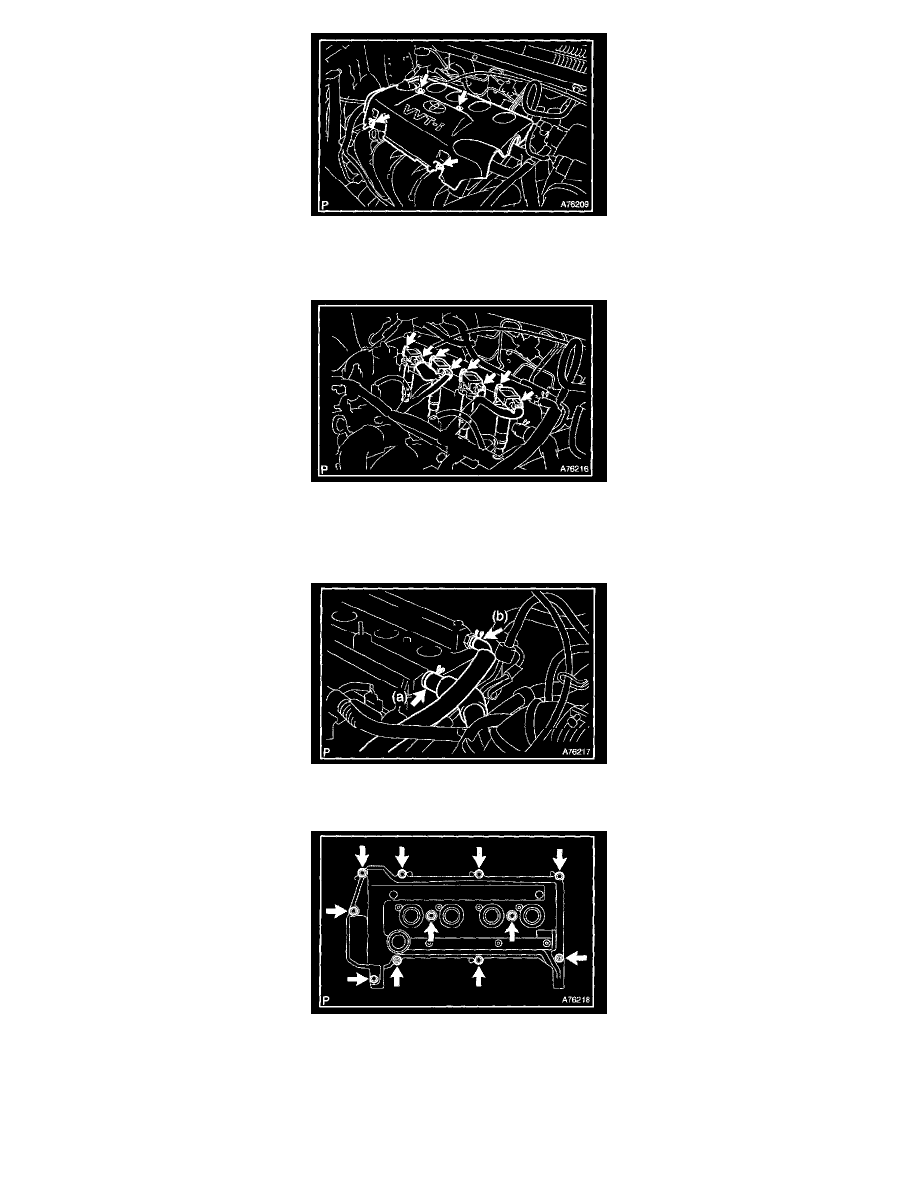

a. Remove the 4 nuts and cylinder head cover.
3. REMOVE IGNITION COIL NO.1
a. Disconnect the 4 ignition coil connectors.
b. Remove the 4 bolts and 4 ignition coils.
4. REMOVE CYLINDER HEAD COVER SUB-ASSY
a. Disconnect the ventilation hose No. 2.
b. Disconnect the ventilation hose.
c. Remove the 9 bolts, 2 nuts, 2 seal washers and then remove the cylinder head cover.
5. DISCONNECT FUEL TUBE SUB-ASSY
