Page 24

background image

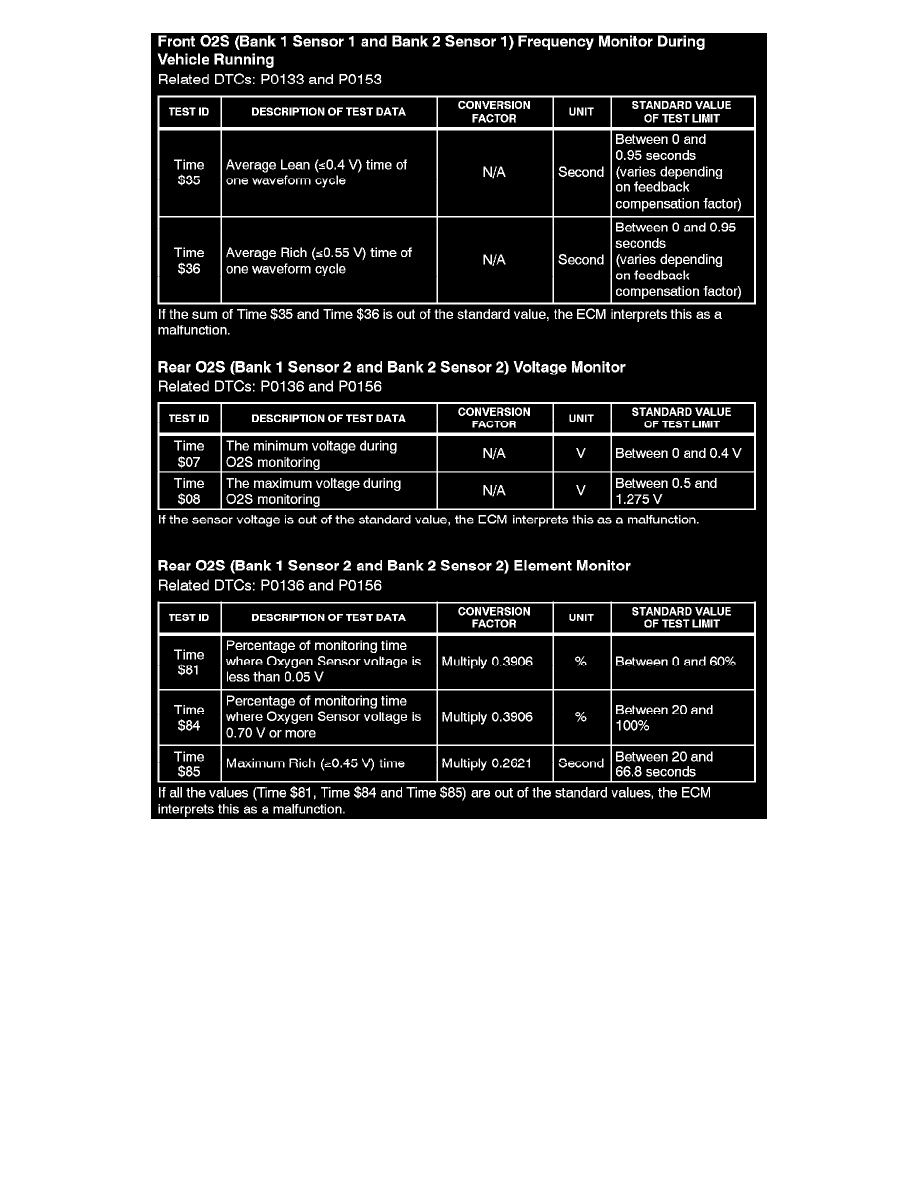

CHART 21

Powertrain Management
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Oxygen Sensor / Technical Service Bulletins / Engine Controls - O2 Sensor Threshold Monitor Values
Page 1643
