Control Module: Testing and Inspection

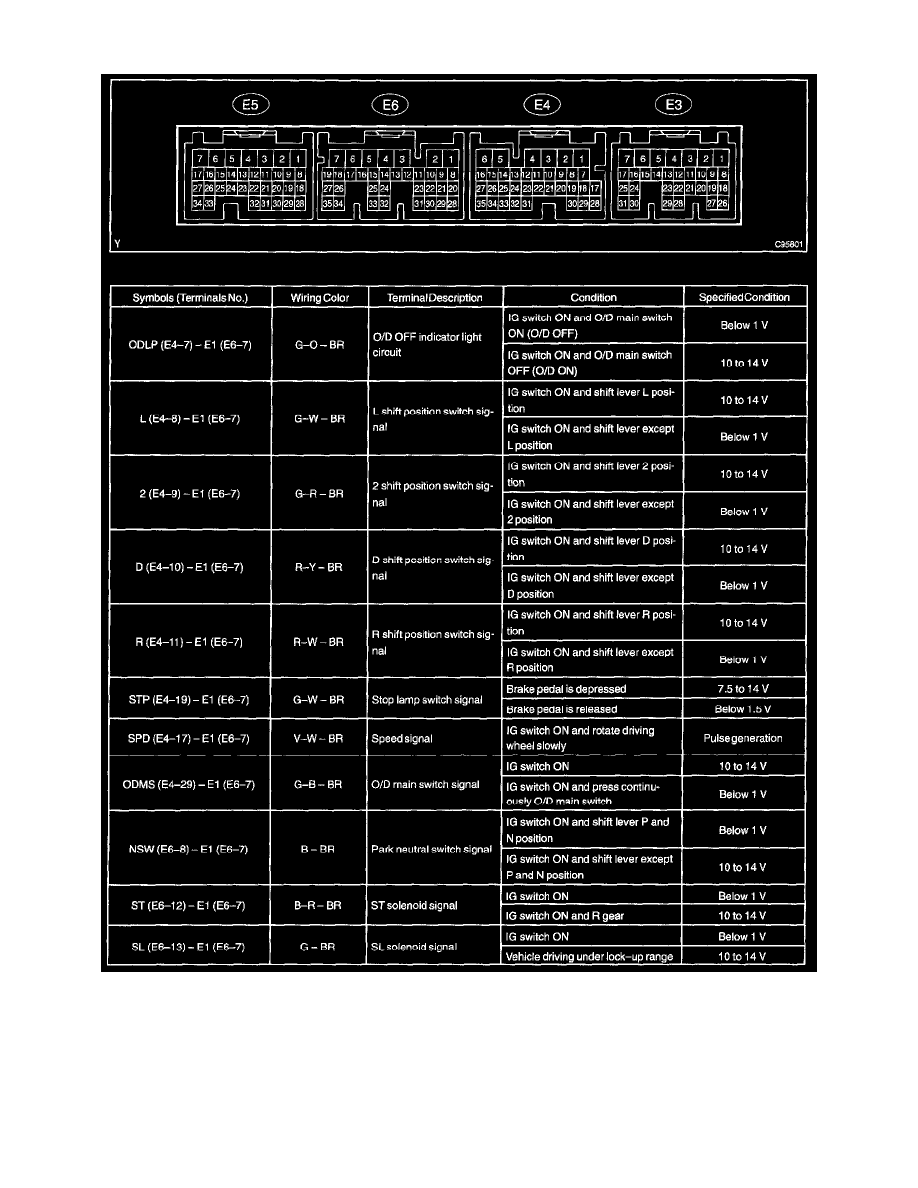

Terminals Of ECM/Pinouts Part 1

Powertrain Management
Transmission Control Systems
Relays and Modules - Transmission and Drivetrain
Relays and Modules - A/T
Control Module, A/T
Component Information
Testing and Inspection
