Alternator: Service and Repair
Replacement
REPLACEMENT

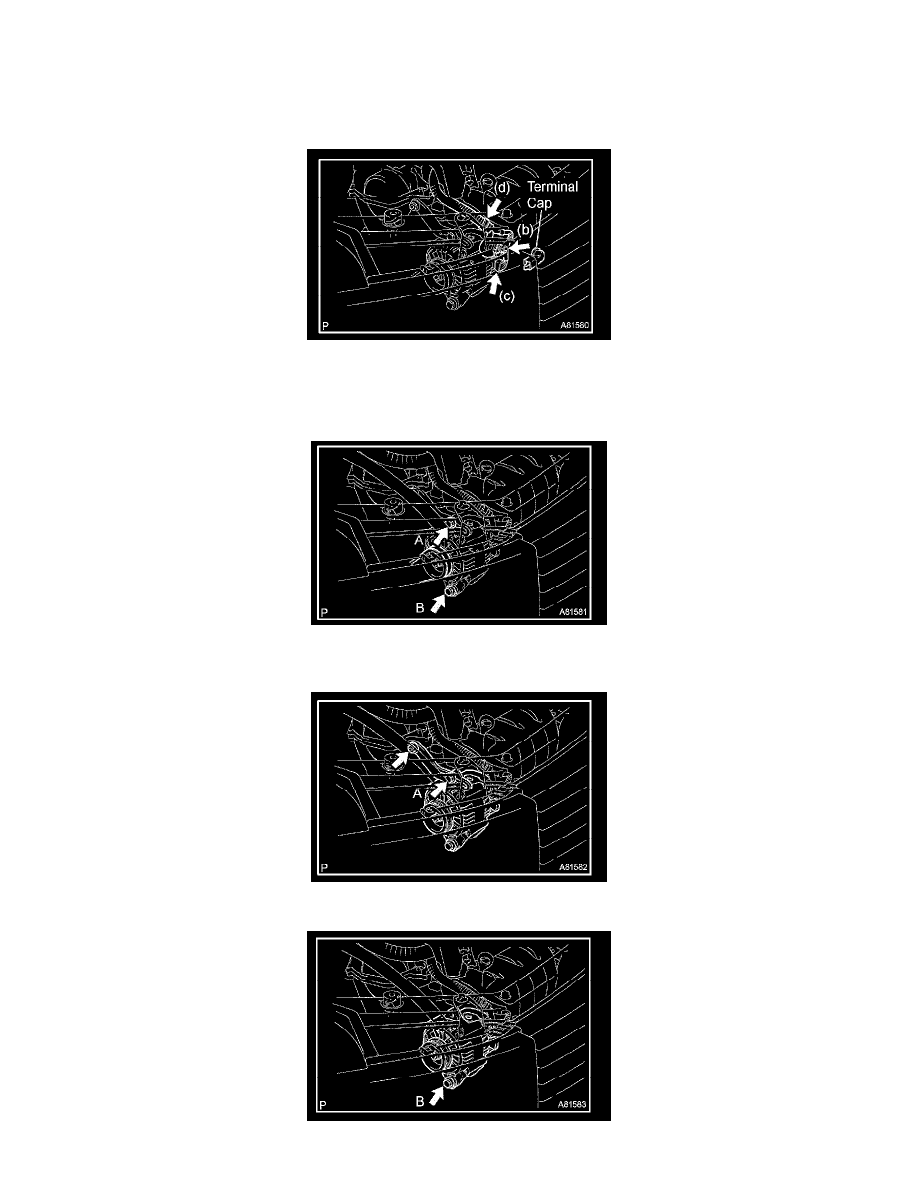

1. REMOVE GENERATOR ASSY
a. Remove the terminal cap.
b. Remove the nut and generator wire.
c. Disconnect the generator connector.
d. Remove the wire harness clamp.
e. Loosen bolts A and B.
f.
Release the fan and generator V-ribbed belt tension, and remove the fan and generator V-ribbed belt.
g. Remove bolt A and the nut, then remove the fan belt adjusting bar.
