xB L4-1.5L (1NZ-FE) (2004)
/Page-1358001.png)
Quarter Window Glass: Service and Repair

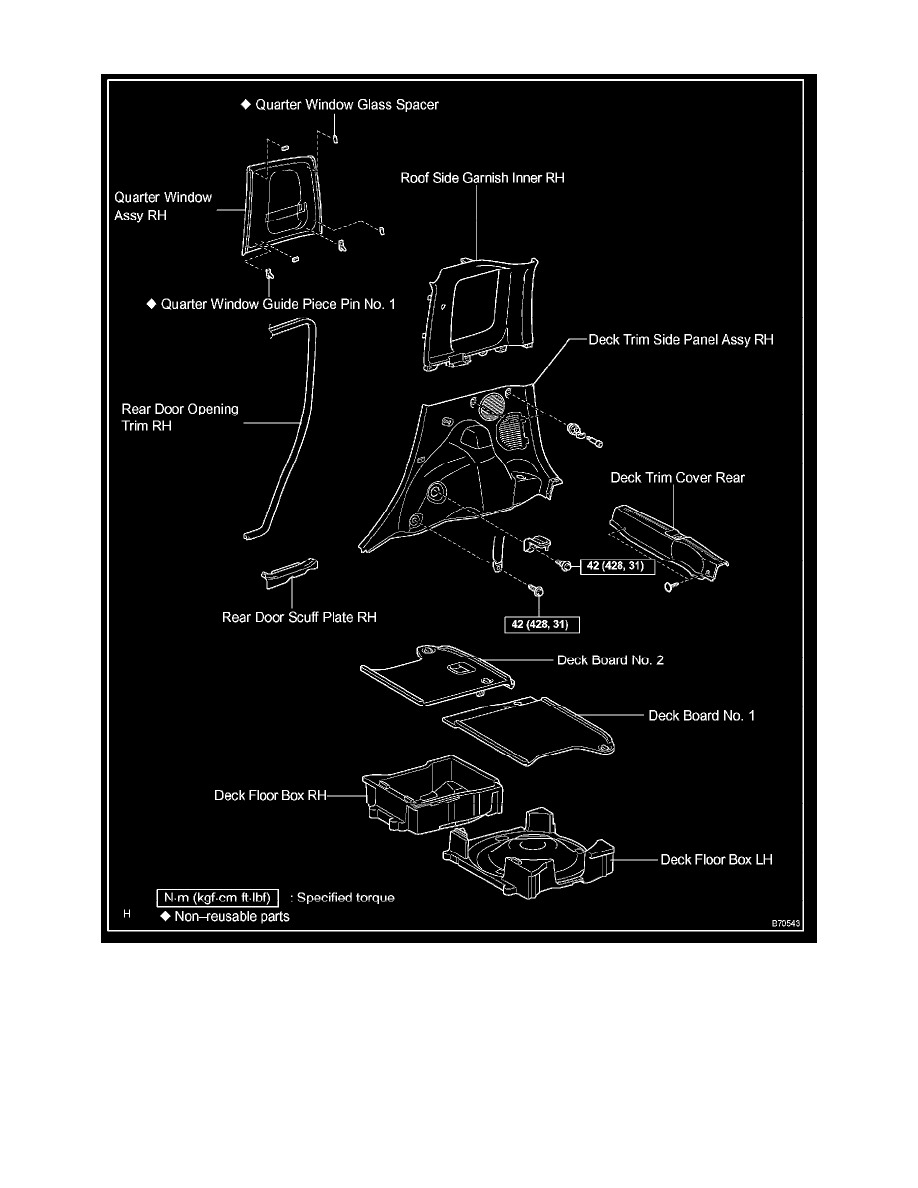

Quarter Window Assy RH
REPLACEMENT
HINT:
-
The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information
are included.
-
Use the same procedures for the RH side and LH side.
1. REMOVE REAR SEAT BACK ASSY RH
2. REMOVE REAR SEAT BACK ASSY LH
