xB L4-2.4L (2AZ-FE) (2009)
/Page-432001.png)
Coolant: Service and Repair
2AZ-FE COOLING: COOLANT: REPLACEMENT
REPLACEMENT

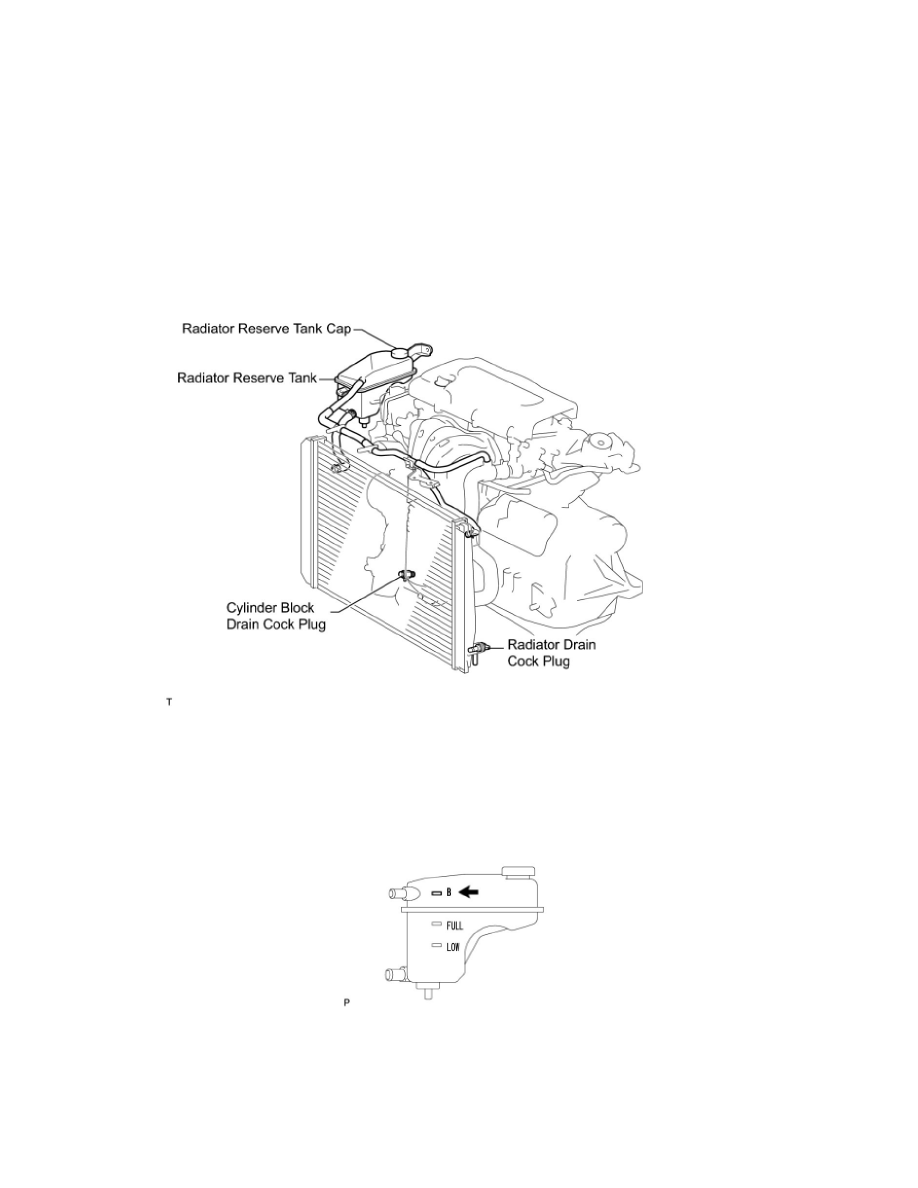

1. DRAIN ENGINE COOLANT
(a) Loosen the radiator drain cock plug.
HINT: Collect the coolant in a container and dispose of it according to the regulations in your area.
(b) Remove the radiator reserve tank cap.
CAUTION: Do not remove the radiator reserve tank cap while the engine and radiator are still hot. Pressurized, hot engine coolant
and steam may be released and cause serious burns.
(c) Loosen the cylinder block drain cock plug.
2. ADD ENGINE COOLANT
NOTICE: Fill the coolant according to following process in order to bleed air surely, if you drain the coolant while repairing. Improper work
may cause engine damage, because air may remain in the cooling system. Do not open the radiator cap when the engine and radiator are hot.
(a) Tighten the radiator drain cock plug by hand.
(b) Tighten the cylinder block drain cock plug.
Torque: 13 Nm (130 kgf-cm, 9 ft-lbf)
(c) Remove the radiator reserve tank cap, then fill TOYOTA Super Long Life Coolant up to "B" line of reserve tank.
Standard capacity:
