xD L4-1.8L (2ZR-FE) (2008)
Brake Master Cylinder: Service and Repair
Removal
BRAKE: BRAKE MASTER CYLINDER: REMOVAL
REMOVAL
1. DRAIN BRAKE FLUID
NOTE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.
2. REMOVE COWL TOP VENTILATOR LOUVER CENTER See: Brake Bleeding/Service and Repair/Replacement
3. REMOVE BATTERY
4. REMOVE BATTERY TRAY
5. REMOVE BATTERY CARRIER
6. DISCONNECT CLUTCH RESERVOIR TUBE (for Manual Transaxle)

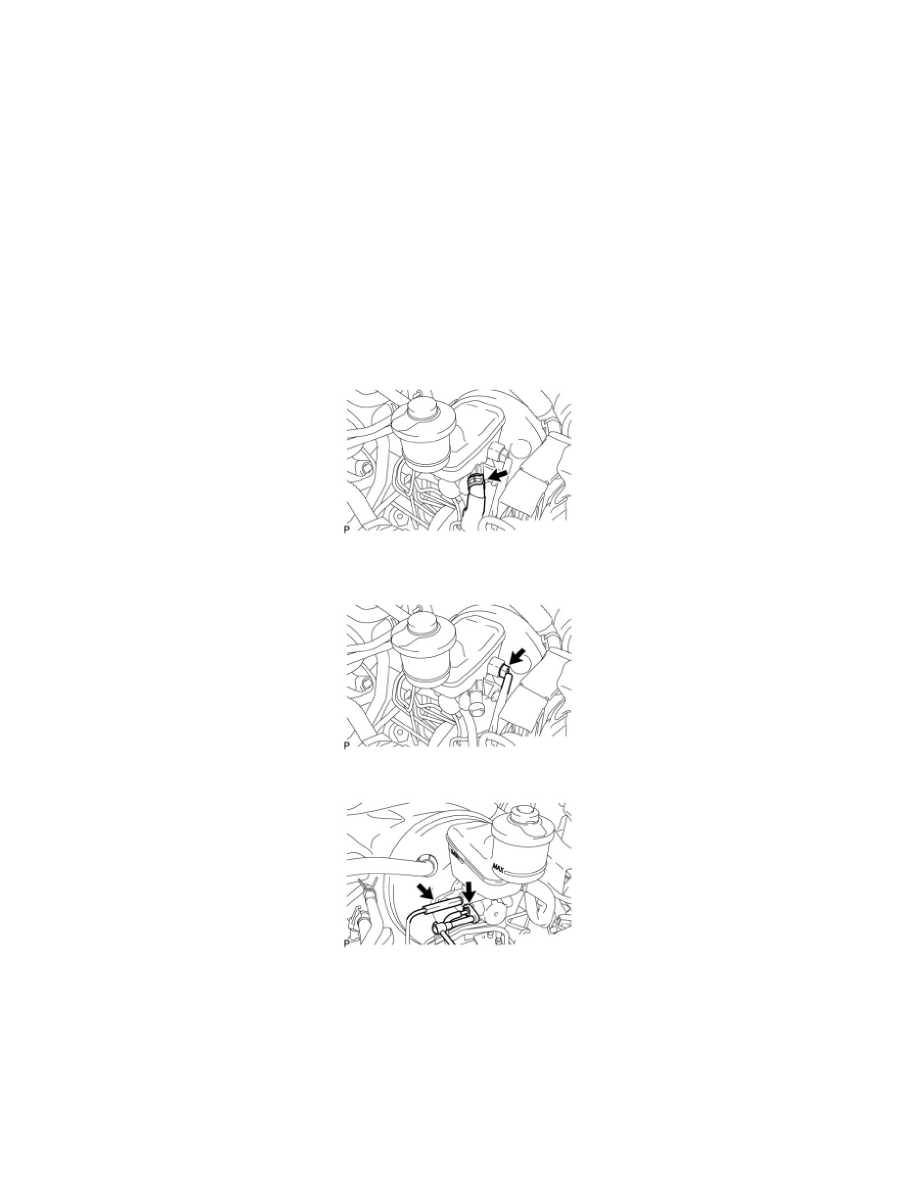

(a) Slide the clip and disconnect the clutch reservoir tube.
7. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY
(a) Disconnect the brake fluid level warning switch connector.
(b) Using a union nut wrench, separate the 2 brake tubes from the brake master cylinder sub-assembly.
