xD L4-1.8L (2ZR-FE) (2008)
/Page-681002.png)

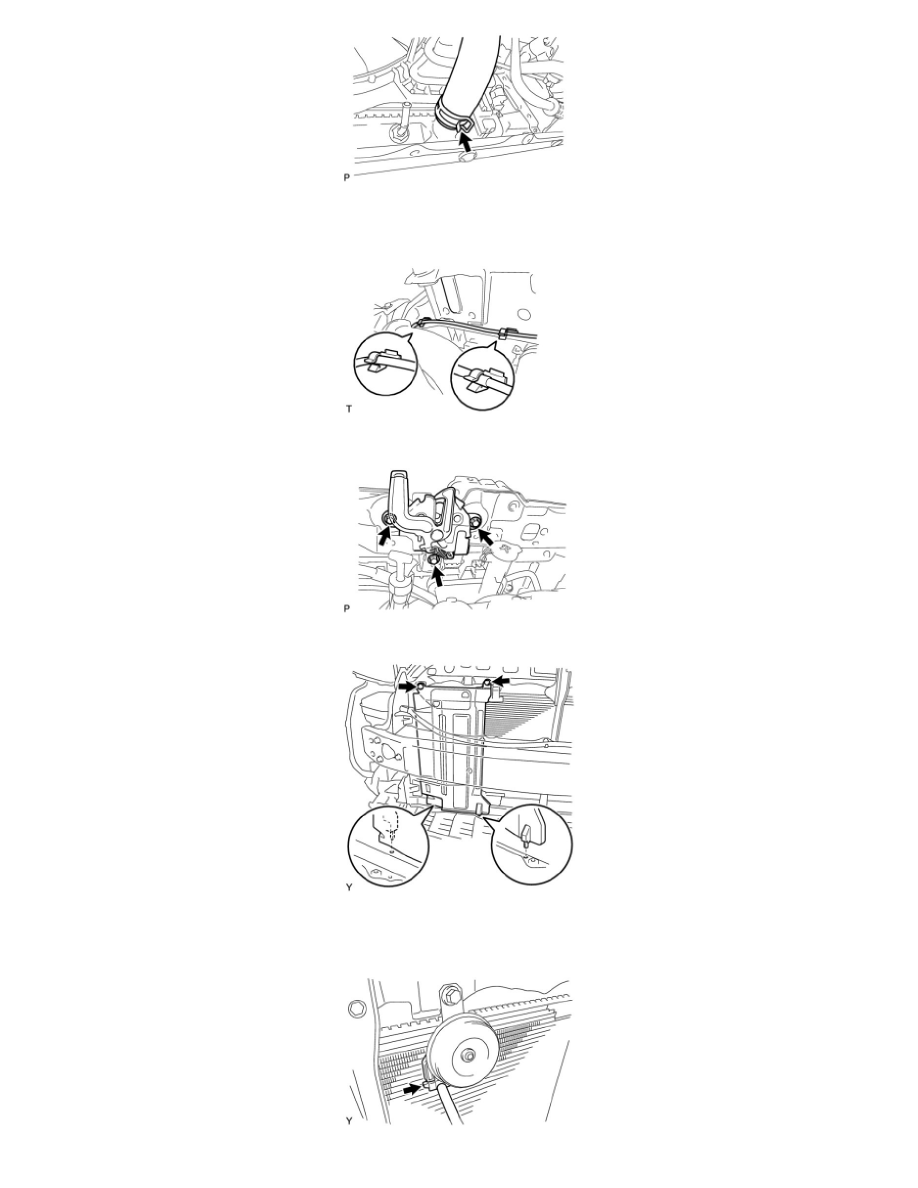

10. DISCONNECT NO. 2 RADIATOR HOSE
(a) Loosen the clip and disconnect the No. 2 radiator hose.
11. REMOVE HOOD LOCK ASSEMBLY
(a) Separate the hood lock control cable assembly from the 2 clamps.
(b) Remove the 3 bolts and remove the hood lock assembly.
12. REMOVE NO. 1 COOLER COVER
(a) Remove the 2 clips and remove the No. 1 cooler cover.
13. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
