xD L4-1.8L (2ZR-FE) (2008)
Throttle Body: Service and Repair
Removal
2ZR-FE ENGINE CONTROL SYSTEM: THROTTLE BODY: REMOVAL
REMOVAL
1. DRAIN ENGINE COOLANT See: Engine, Cooling and Exhaust/Cooling System/Coolant/Service and Repair
2. REMOVE NO. 2 CYLINDER HEAD COVER See: Ignition System/Ignition Coil/Service and Repair/Removal

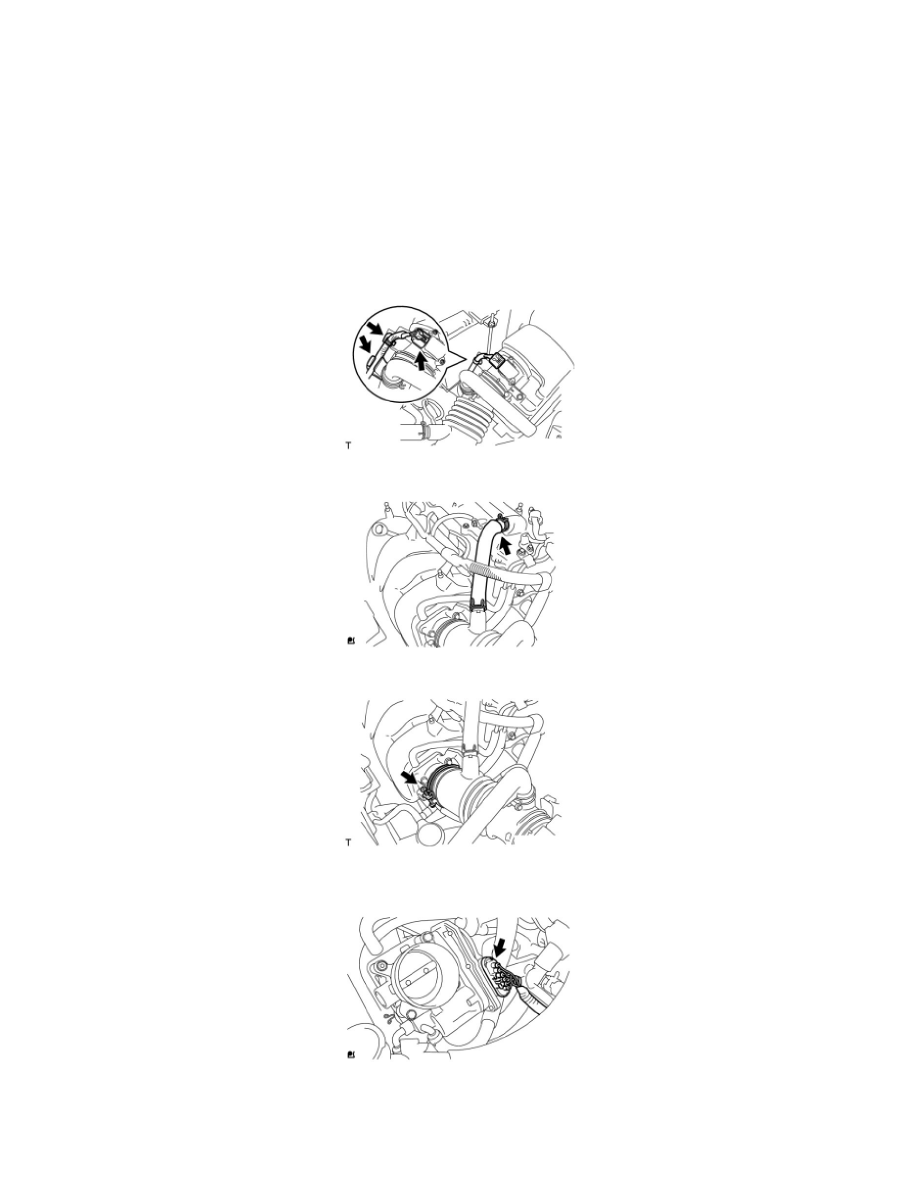

3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE
(a) Disconnect the wire harness clamp and mass air flow meter connector.
(b) Disconnect the No. 2 ventilation hose.
(c) Loosen the hose clamp, unlock the 2 clamps and remove air cleaner cap sub-assembly with hose.
4. REMOVE THROTTLE BODY ASSEMBLY
(a) Disconnect the throttle body connector.
