xD L4-1.8L (2ZR-FE) (2008)
/Page-1065001.png)
Ignition Coil: Service and Repair
Removal
2ZR-FE IGNITION: IGNITION COIL AND SPARK PLUG: REMOVAL
REMOVAL
1. REMOVE NO. 2 CYLINDER HEAD COVER

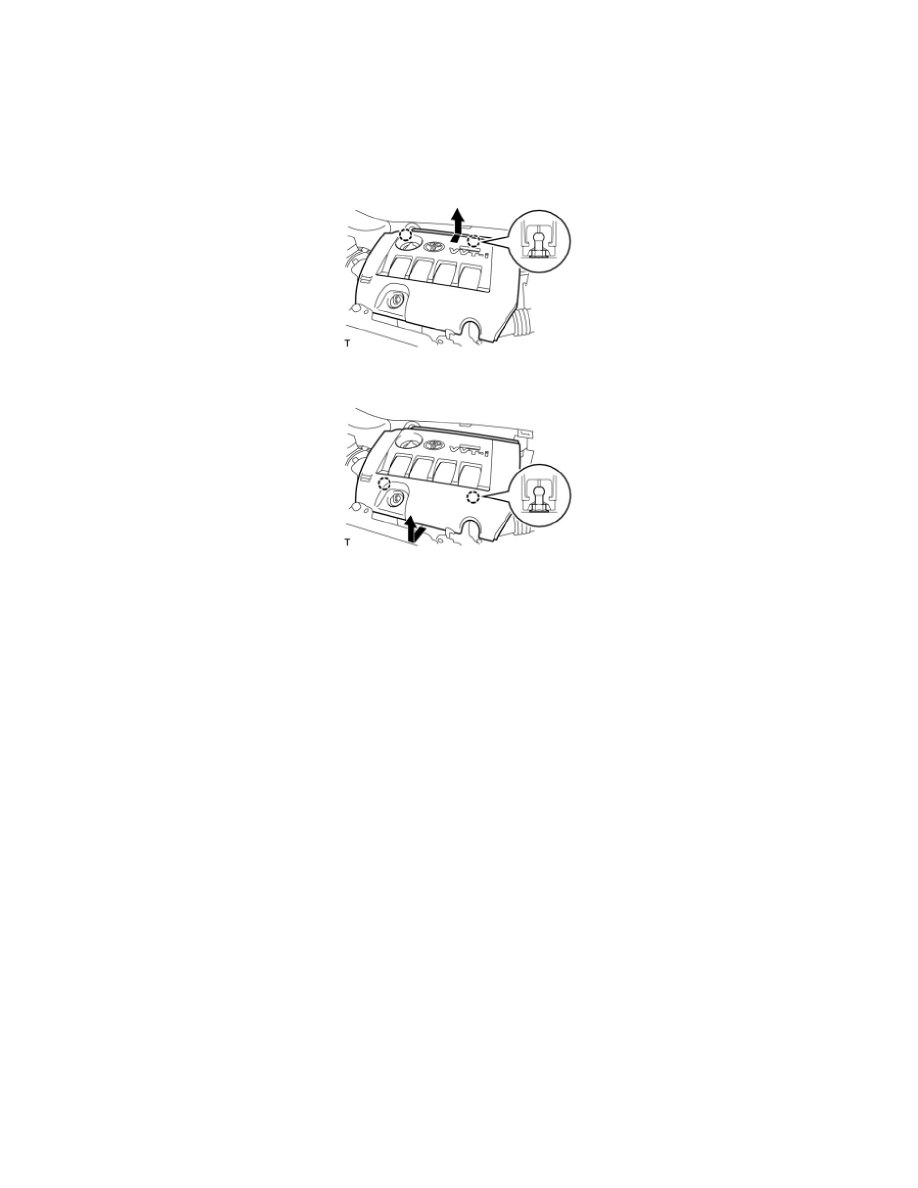

(a) First, lift up the rear of the No. 2 cylinder head cover to disengage the 2 fittings shown in the illustration.
