xD L4-1.8L (2ZR-FE) (2008)

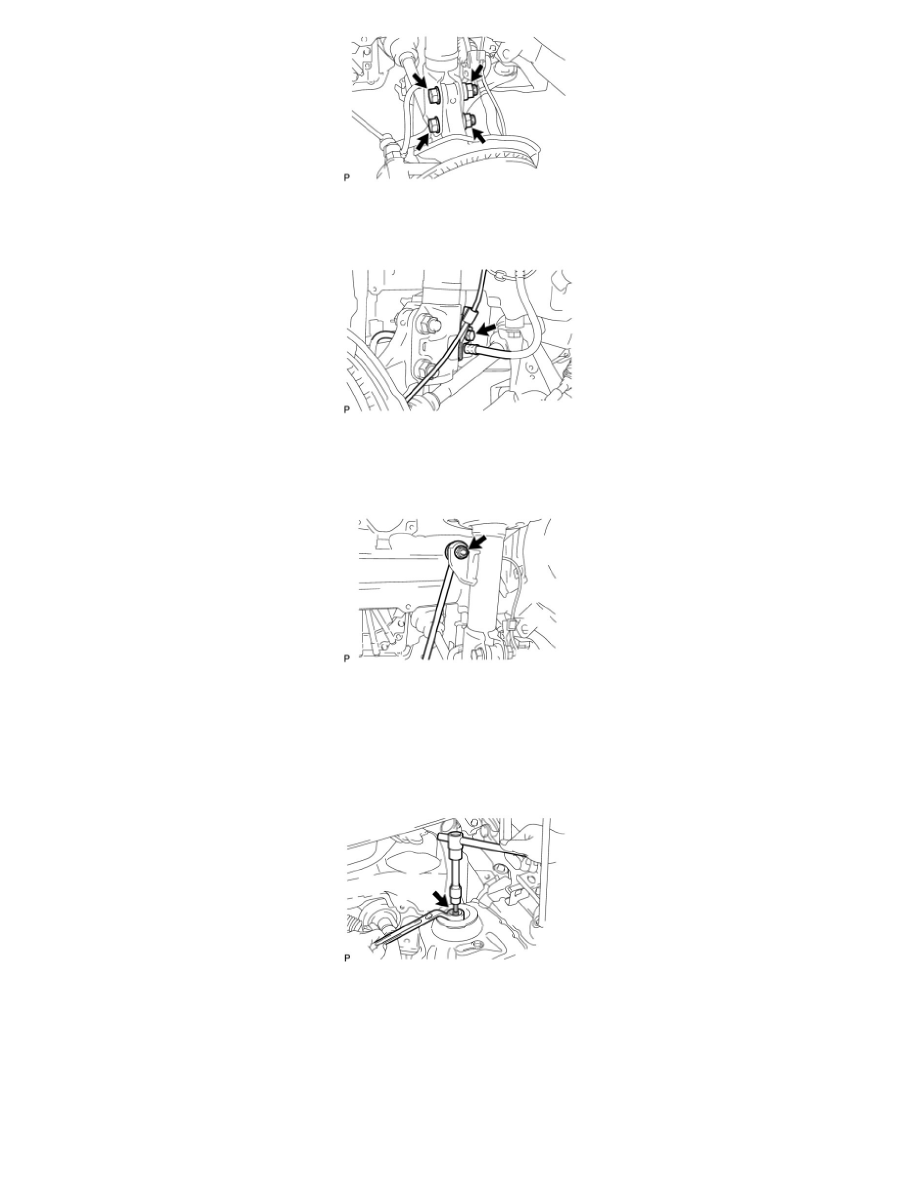

(c) Install the 2 bolts and 2 nuts.
Torque: 164 Nm (1672 kgf-cm, 121 ft-lbf)
HINT: Keep the bolt from rotating while loosening and removing the nuts.
2. INSTALL FRONT FLEXIBLE HOSE
(a) Install the flexible hose and speed sensor with the bolt.
Torque: 29 Nm (300 kgf-cm, 22 ft-lbf)
NOTE: Install the flexible hose and speed sensor without twisting them.
3. INSTALL FRONT STABILIZER LINK ASSEMBLY
(a) Install the stabilizer link with the nut.
Torque: 74 Nm (755 kgf-cm, 55 ft-lbf)
HINT: If the ball joint turns together with the nut, use a socket hexagon wrench 6 to hold the stud.
4. INSTALL FRONT WHEEL
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
5. FULLY TIGHTEN FRONT SHOCK ABSORBER WITH COIL SPRING
(a) Using a socket hexagon wrench 6, fix the shock absorber rod and tighten the nut.
Torque: 55 Nm (561 kgf-cm, 41 ft-lbf)
6. INSTALL FRONT SUSPENSION SUPPORT DUST COVER
7. INSTALL OUTER COWL TOP PANEL
8. INSTALL FRONT AIR SHUTTER SEAL RH
9. INSTALL FRONT WIPER MOTOR AND LINK See: Wiper and Washer Systems/Wiper Motor/Service and Repair/Front Wiper
Motor/Installation
