Leon Mk1

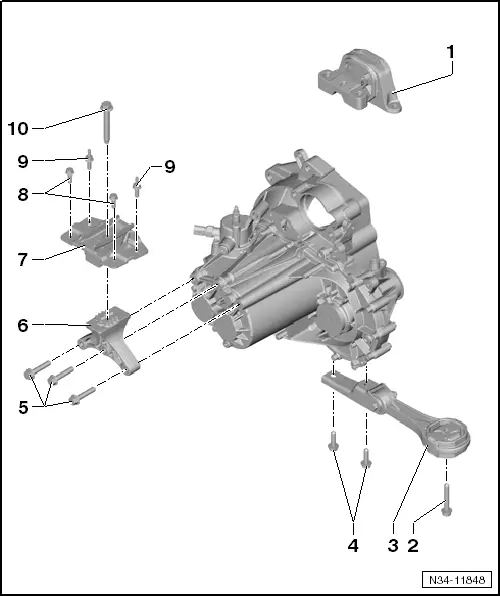

Exploded view - assembly mountings

Exploded view - assembly mountings
1 - Engine mounting
q   → Rep. gr.10
2 - Bolt.
q   Pendulum support to sub-frame
q   → Running gear, axles, steering; Rep. gr.40.
3 - Pendulum support
q   → Running gear, axles, steering; Rep. gr.40.
4 - Bolt.
q   Pendulum support to gearbox
q   → Running gear, axles, steering; Rep. gr.40.
5 - Bolt.
q   40 Nm + 90°
q   Gearbox bracket to gearbox
q   replace
6 - Gearbox console
7 - Gearbox console
q   → Rep. gr.10
8 - Bolt.
q   Gearbox mounting to body
q   → Rep. gr.10
9 - Bolt.
q   Gearbox mounting to body
q   → Rep. gr.10
10 - Bolt.
q   Gearbox bracket to gearbox mounting
q   60 Nm + 180°
q   replace


Gearbox bracket -A- to gearbox
–  Renew bolts
–  Tighten all bolts hand-tight.
–  Tighten bolts to specified torque.
Bolts: 40 Nm + 90°
  N34-11820
Gearbox to body
–  Renew plug.
–  Hand-tighten bolts.
–  Tighten bolt -arrow- to specified torque.
Bolts -arrow-: 60 Nm + 180°
  Note
Install engine and gearbox mountings without tension → Rep. gr.10.
Slave cylinder to gearbox → Item
Gearbox selector lever to selector shaft → Item
Selector cable support bracket to gearbox → Item.
Pendulum support to subframe and gearbox → Running gear, axles, steering; Rep. gr.40.
  N34-11818
