Leon Mk1

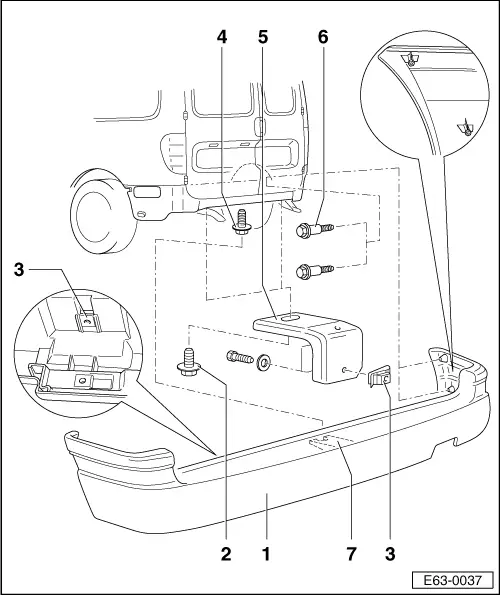

General assembly diagram |
1 - | Bumper lining |
q | Dismantling: |
– | Remove the hexagonal screws → Item |
– | Remove the hexagonal screws → Item and → Item |
– | Remove the lining and the supports → Item towards the back of the vehicle |
2 - | Hexagonal screw |
3 - | Plate bolt |
q | Fitted to bumper |
4 - | Hexagonal screw |
5 - | Support |
6 - | Hexagonal screw |
q | With guide sleeve |
7 - | Support |
q | Lining element |
q | Guide element |
