Checking brake pressure regulator, delay dependent
Checking brake pressure regulator, delay dependent
Models without ABS and ABS/EDL are equipped with two delay dependent brake pressure regulators.

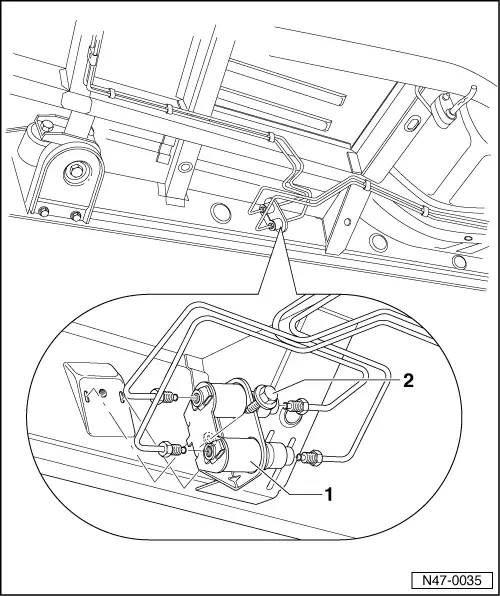

Due to diagonal brake circuit division, a brake pressure regulator is bolted onto the left longitudinal member for each rear wheel. The pressure in the brake calipers is regulated via a pre-specified ratio to prevent rear wheel over-braking.
