Wiper blade: > < Wiper arm: fitting

Leon Mk1

Rear windscreen wiper: adjusting park position

Rear windscreen wiper: adjusting park position
Special tools and workshop equipment required
t  Torque wrench -SAT 8010-
  W00-2760
Check that the distance -A- between the wiper blade and the lower edge of the window is 18 mm.
–  If necessary, adjust the park position of the rear window wiper by moving the wiper arm.

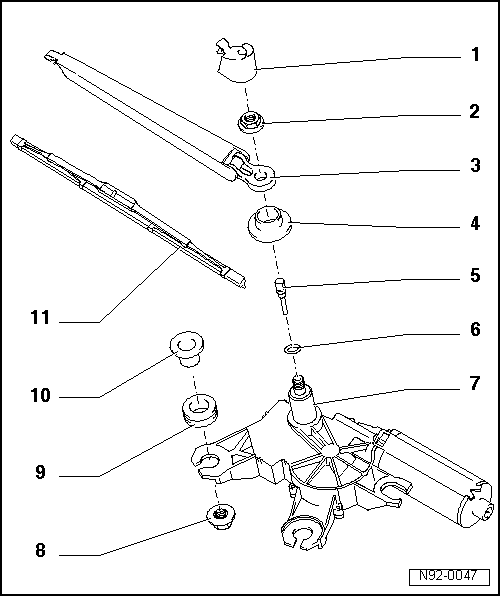

Wiper arm: removing → Chapter
–  Tighten the nuts to the specified tightening torque → Chapter.
  E92-10005

Wiper blade: > < Wiper arm: fitting
