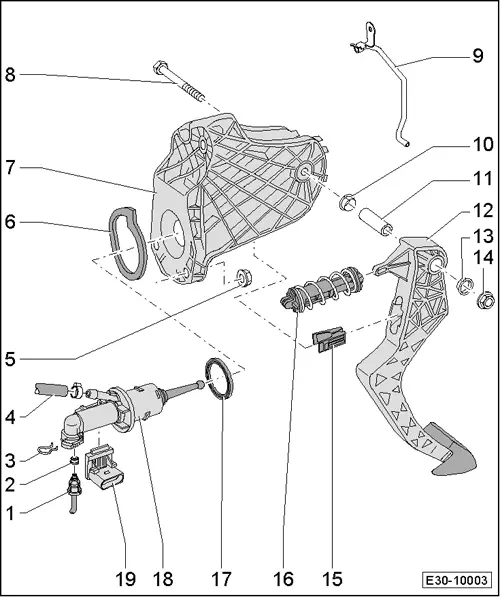

| Pedal assembly with clutch position sender -G476-: Assembly overview |
| 1 - | Pipe and hose assembly |
| q | With frequency modulator |
| q | Removing and installing pipe and hose assembly on the master cylinder → Fig. |
| 2 - | O ring |
| q | replace → Fig. |
| 3 - | Securing clip |
| 4 - | Intake hose |
| q | To brake fluid reservoir |
| 5 - | 25 Nm |
| q | Always replace. |
| 6 - | Seal |
| q | Always replace. |
| 7 - | Mounting bracket |
| q | For clutch pedal |
| q | removing and fitting → Chapter |
| 8 - | Bolt. |
| 9 - | Crash bar |
| q | Can be fixed differently → Anchor. |
| 10 - | Mounting bush |
| 11 - | Bearing pin |
| 12 - | Clutch pedal |
| q | removing and fitting → Chapter |
| 13 - | Mounting bush |
| 14 - | 25 Nm |
| q | Always replace. |
| 15 - | Retaining clip |
| q | For clutch master cylinder control rod |
| q | Remove → Fig. |
| q | Fitting → Fig. |
| 16 - | Over-centre spring |
| q | removing and fitting → Chapter |
| 17 - | Seal |
| q | replace |
| 18 - | Master cylinder |
| q | removing and fitting → Chapter |
| 19 - | Clutch position sender -G476- |
| q | removing and fitting → Chapter |
